ATEX Vortex Enclosure Coolers ATEX Zones 2 and 22

ATEX Vortex A/C Coolers are designed specifically for purged * Electrical Enclosures in IECEx, ATEX Zones 2 and 22 and Temperature Class T4 areas. The ATEX Vortex A/C incorporates the most up-to-date features into Vortec’s line of highly reliable, cost effective enclosure coolers.

The ATEX Vortex A/C is available in 4 different cooling capacities from 900 to 5,000 BTU/hr. All of Vortec’s Enclosure Coolers keep Electrical and Electronic Enclosures cool, clean and protected and are a low cost alternative to expensive, high maintenance air conditioners; and avoid contamination with dirty, humid air caused by fans. Today’s small, compact multi-function electronic controls, variable speed drives, servos and programmable logic controllers are extremely sensitive to heat and contamination. Smaller cabinet sizes make temperature control difficult and prone to premature failures. Excessive heat will cause digital displays to misread, controls to drift, and breakers to trip below rated loads. The result is productivity lost due to machine or line shutdowns.

Features

• IECEx Certified for Explosive Atmospheres
• Sleek, modern design
• Noise reduction of 78%, when compared to other vortex enclosure coolers
• Energy use reduction through its integral mechanical thermostat
• Quick and easy installation in about 5 minutes
• Flexible installation: top, side or front (door) mount
• Incorporates check valve to prevent loss of enclosure pressure when cooling is not required

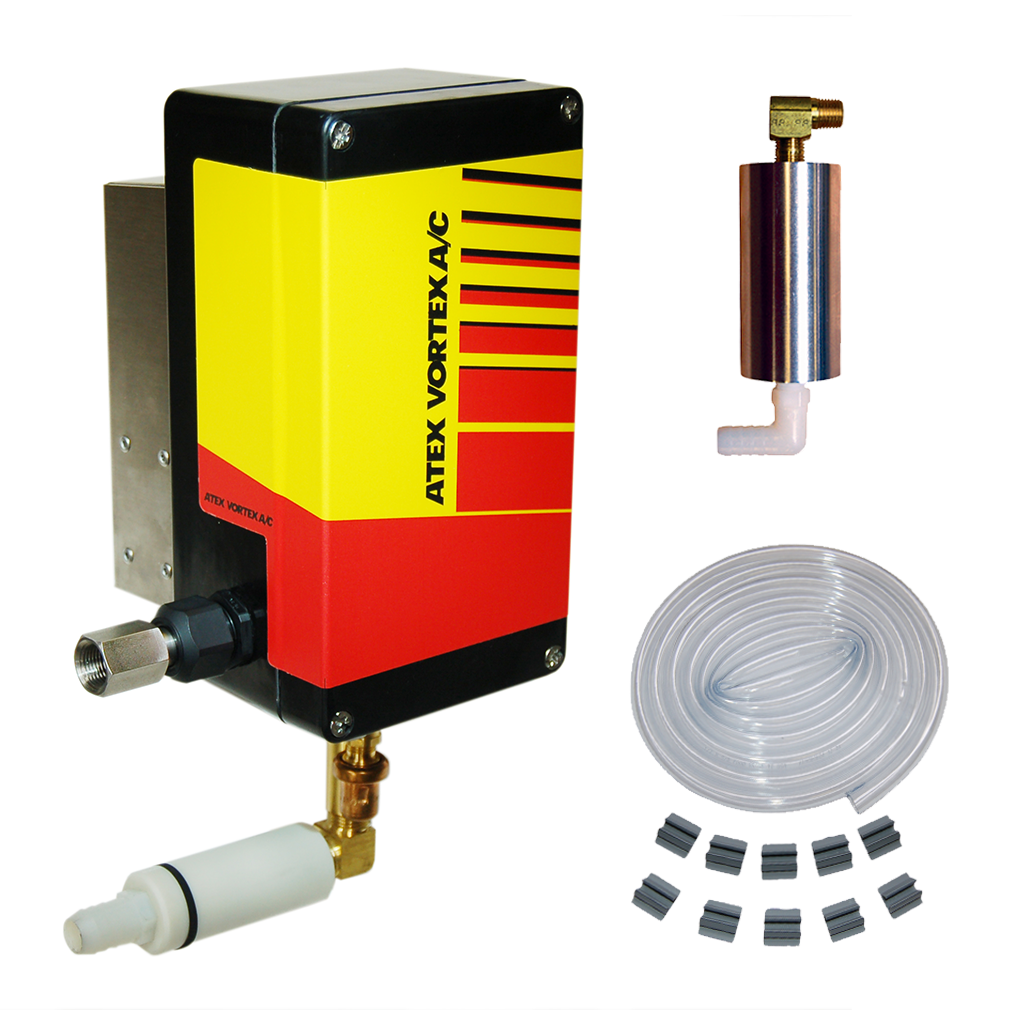

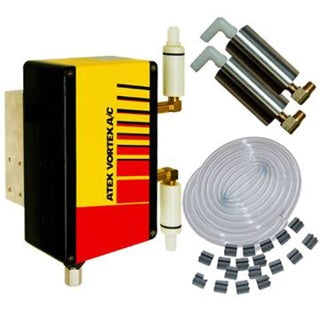

Cooler Only includes Vortex A/C unit, Cold Air Muffler Kit, and Cold Air Ducting Kit.

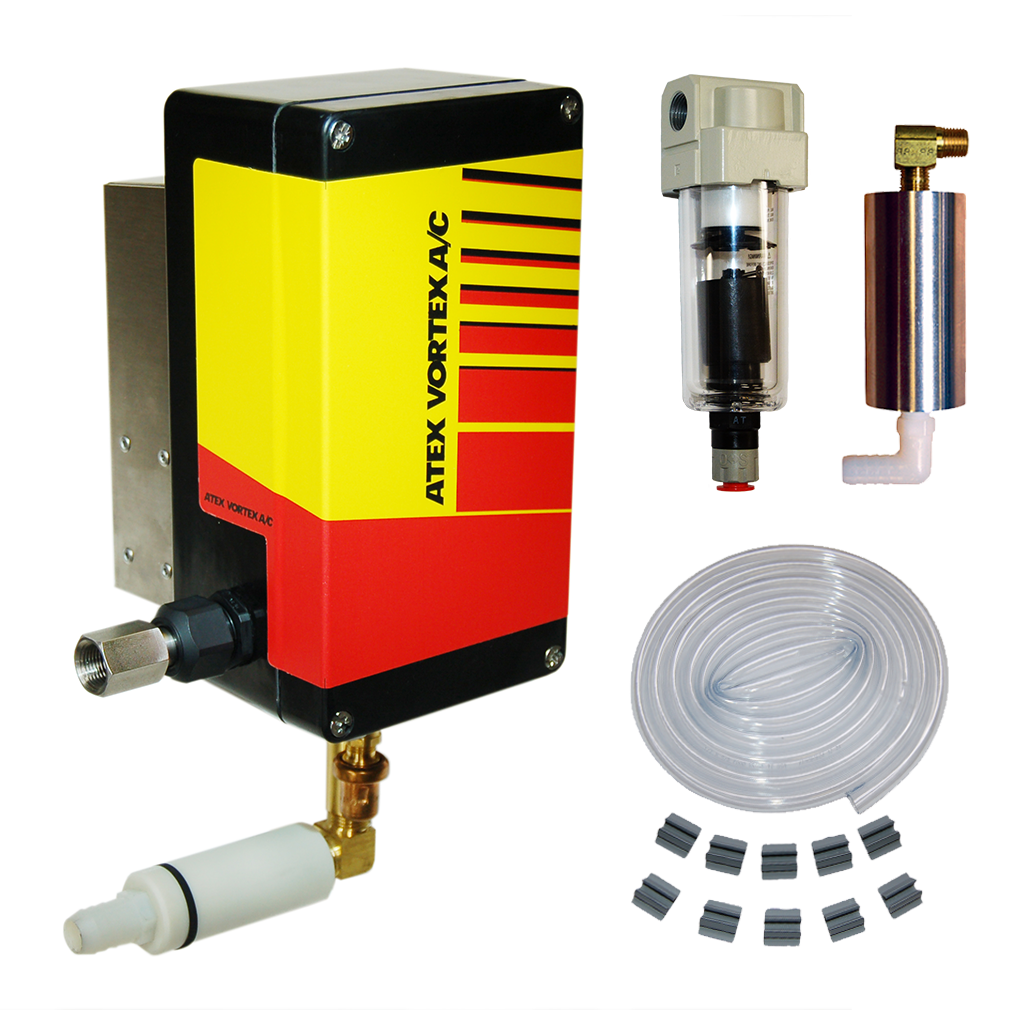

Complete System includes Cooler Only components, plus Auto Drain Filter.

Specifications

• Product Series: ATEX Vortex A/C
• Product Type: Compressed-air-powered vortex enclosure cooler
• Cooling Method: Vortex tube cooling (No electrical power required)
• Application: Cooling electrical enclosures in ATEX Zones 2 & 22 and Temperature Class T4 areas
• Compressed Air Source: Clean, dry compressed air
• Operating Ambient Temperature Range: –20 °C to +80 °C (–4 °F to 175 °F)
• Thermostat Type: Mechanical thermostat
• Enclosure Installation: Top, side, or front mount
• Certification: ATEX Ex II 3 GD T4
• Compressed Air Consumption: Model dependent (See cooling capacity table)
• Sound Level: Model dependent (60 dBA to 75 dBA)
• Cooling capacity: 900 BTU/hr (264 W)
• Cooling capacity: 1500 BTU/hr (440 W)
• Cooling capacity: 2500 BTU/hr (733 W)
• Cooling capacity: 5000 BTU/hr (1465 W)
• Air consumption @ 100 psig: varies (15 scfm, 25 scfm, 35 scfm, 70 scfm)
• Sound level at 100 psig: ~60 dBA to 75 dBA
• Thermostat: Mechanical

Model Numbers

• Vortec 7315 - 900 BTU 15 SCFM Cooler Only
• Vortec 7325 - 1500 BTU 25 SCFM Cooler Only
• Vortec 7335 - 2500 BTU 35 SCFM Cooler Only
• Vortec 7370 - 5000 BTU 70 SCFM Cooler Only

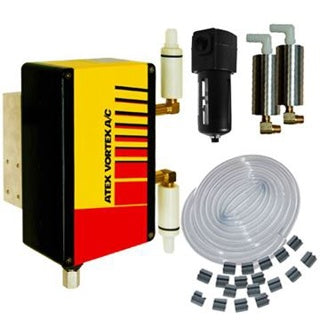

• Vortec 7415 - 900 BTU 15 SCFM Complete System with Auto Drain Filter
• Vortec 7425 - 1500 BTU 25 SCFM Complete System with Auto Drain Filter
• Vortec 7435 - 2500 BTU 35 SCFM Complete System with Auto Drain Filter
• Vortec 7470 - 5000 BTU 70 SCFM Complete System with Auto Drain Filter
