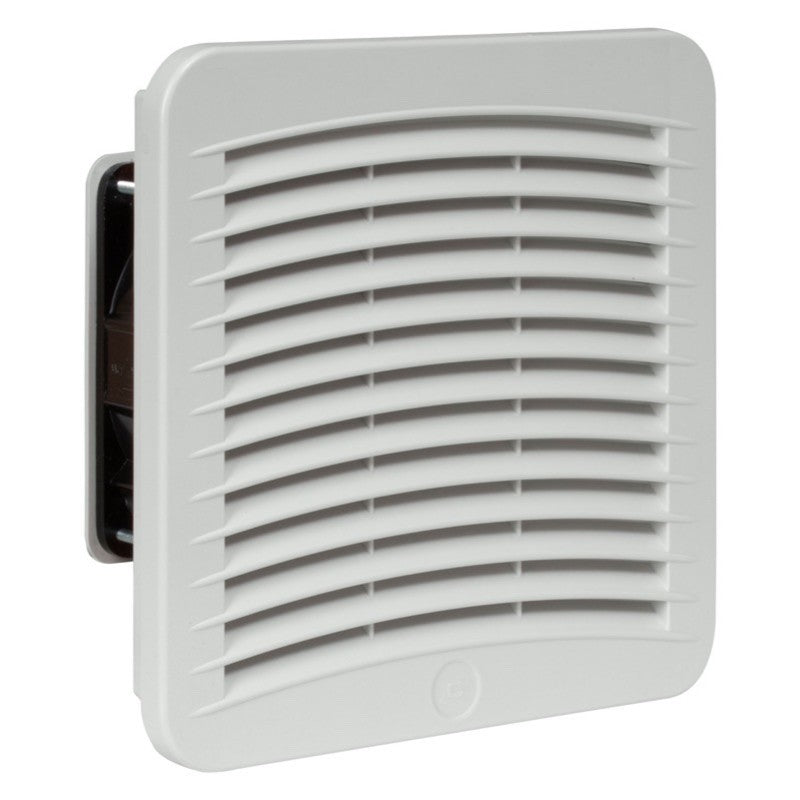

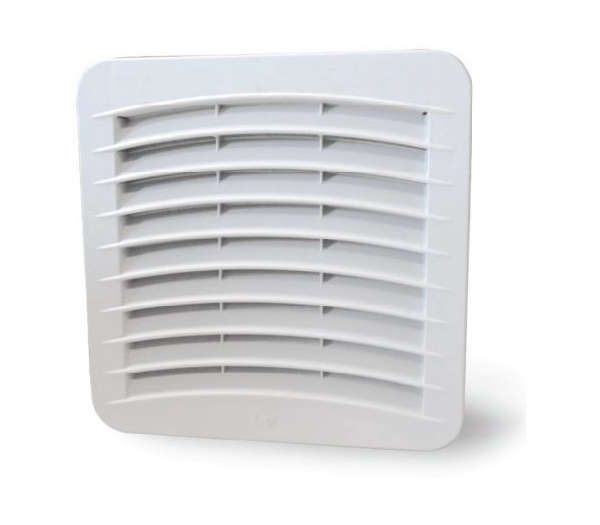

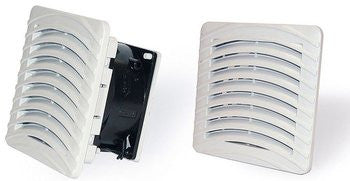

8" Enclosure Filter Fan 63 CFM Reversible Air Flow

The GS filter fans, for the ventilation of electrical enclosures, are the optimal solution when the ambient temperature is lower than the temperature inside the cabinet, and can be installed, thanks to their reduced depth, on various types of panels. Together with a new modern design, GS filter fans offer the same wide range of sizes and power supplies as previous generations, allowing you to choose the most suitable solution for your installation and geographical area.

Features

8" Enclosure Filter Fans
Single Hole Cutout, Snap-In Installation
Air Flow 63 cfm
Reversible air flow by reversing fan
Easy maintenance and filter replacement
Protection Class: IP54 (NEMA-12)
Electrical connections with spring terminals
Noise Level: 48-49 dB(A)
MBTF: 40,000 hours
Operating Temperature: 14/158°F (-10/+70°C)
Approval: CE, cURus, CSA, EAC

Specifications

Nominal Voltage: 115 V DC (Reversible airflow)
Air Flow: 108 CFM (Free airflow)
Power/Current Absorbed: 22 W / 0.26 A
Operating Temperature Limits: 14 °F to 158 °F (-10 °C to +70 °C)
Housing Material: High-resistance, self-extinguishing ABS UL94V-0 plastic
Mounting: Snap-in or screw mount (Single hole cutout)
Ball Bearing Motor MTBF: 40,000 hours

Model Types

GSV2000220 8" Enclosure Filter Fan, 230 VAC, 63 cfm
GSV2000203 8" Enclosure Filter Fan, 115 VAC, 63 cfm
GSV2000211 8" Enclosure Filter Fan, 24 DC, 63 cfm
GSF20 8" Exhaust Filter
