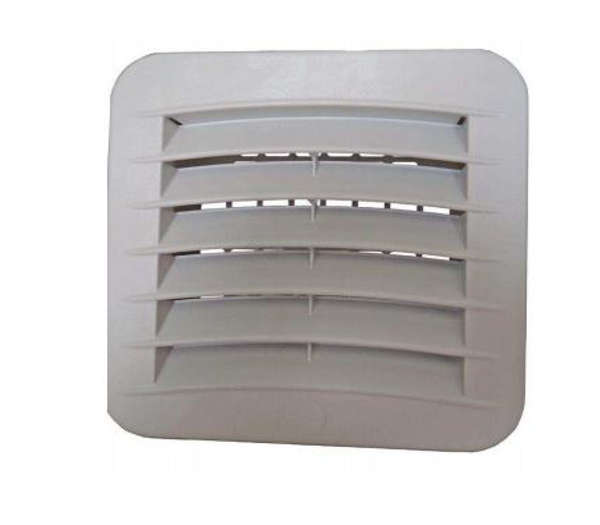

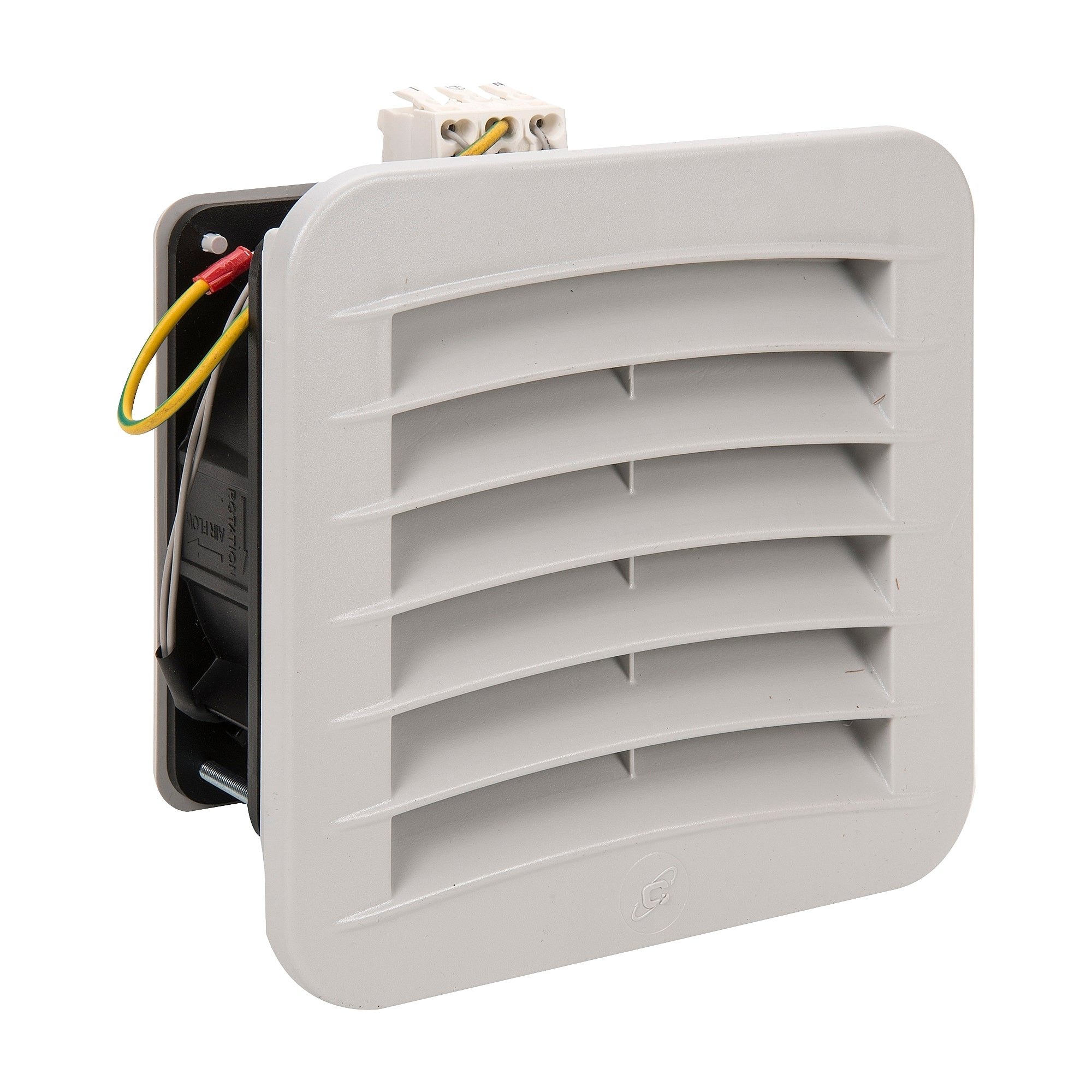

6" Slimline Enclosure Filter Fan 39 CFM Reversible Air Flow

Designed for easy snap-in mounting and made out of high resistance, self-extinguishing ABS UL94V0 plastic. The housing color is machinery grey(RAL7035). The GHV10 models have a hinged front grill for easy access. The air flow rate is 21cfm (35 m3/Hr). They provide an NEMA-12/IP54 protection degree. These are ball bearing fans with a reversible motor having MTBF of 40,000 hours.

Features

6" Enclosure Filter Fans
Single Hole Cutout, Snap-In Installation
Air Flow 39, 53 cfm
Reversible air flow by reversing fan
Easy maintenance and filter replacement
Protection Class: IP54 (NEMA-12)
Electrical connections with spring terminals
MBTF: 40,000 hours
Operating Temperature: 14/140°F (-10/+60°C)
Approval: CE & cUL

Specifications

Nominal Voltage: 115 VAC 50/60 Hz
Reversible Airflow: Yes
Power/Current Absorbed: 20 W / 0.24 A
Operating Temperature (°F): 14 °F to 158 °F
Operating Temperature (°C): ‑10 °C to +70 °C
Housing Material: High‑resistance, self‑extinguishing ABS UL94V‑0 plastic; machinery grey (RAL7035)

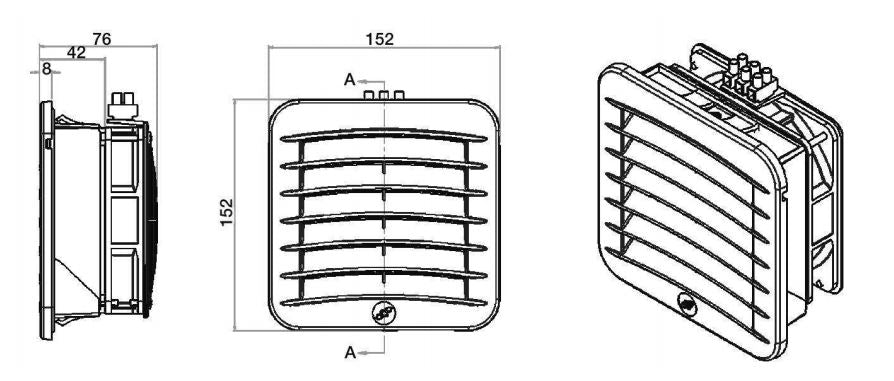

Dimensions (Inch): 6 × 6 × 3.5″
Dimensions (mm): 152 × 152 × 75 mm
Ball Bearing Motor MTBF: 40,000 hours
Approvals: cUL E194444 (UL/CSA)

Model Types

GHV15SL220 6" Slim Filter Fan, 230 VAC, 39 cfm
GHV15SL211 6" Slim Filter Fan, 24DC, 53 cfm
GHF15 Exhaust Filter
