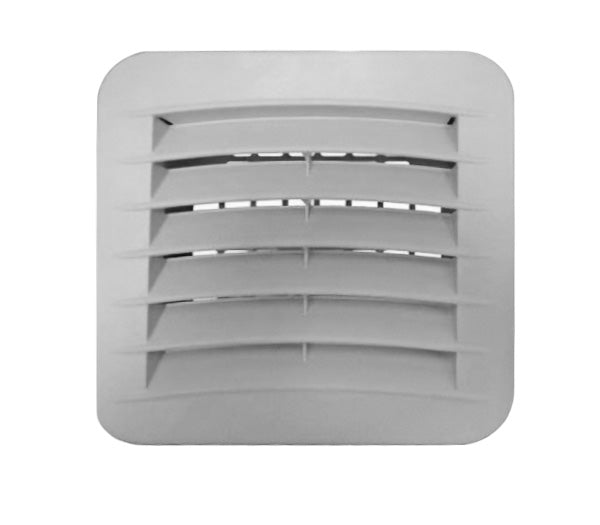

6" Enclosure Filter Fan 39 CFM Reversible Air Flow

The GS filter fans, for the ventilation of electrical enclosures, are the optimal solution when the ambient temperature is lower than the temperature inside the cabinet, and can be installed, thanks to their reduced depth, on various types of panels. Together with a new modern design, GS filter fans offer the same wide range of sizes and power supplies as previous generations, allowing you to choose the most suitable solution for your installation and geographical area.

Features

6" Enclosure Filter Fans
Single Hole Cutout, Snap-In Installation
Air Flow 39 cfm
Reversible air flow by reversing fan

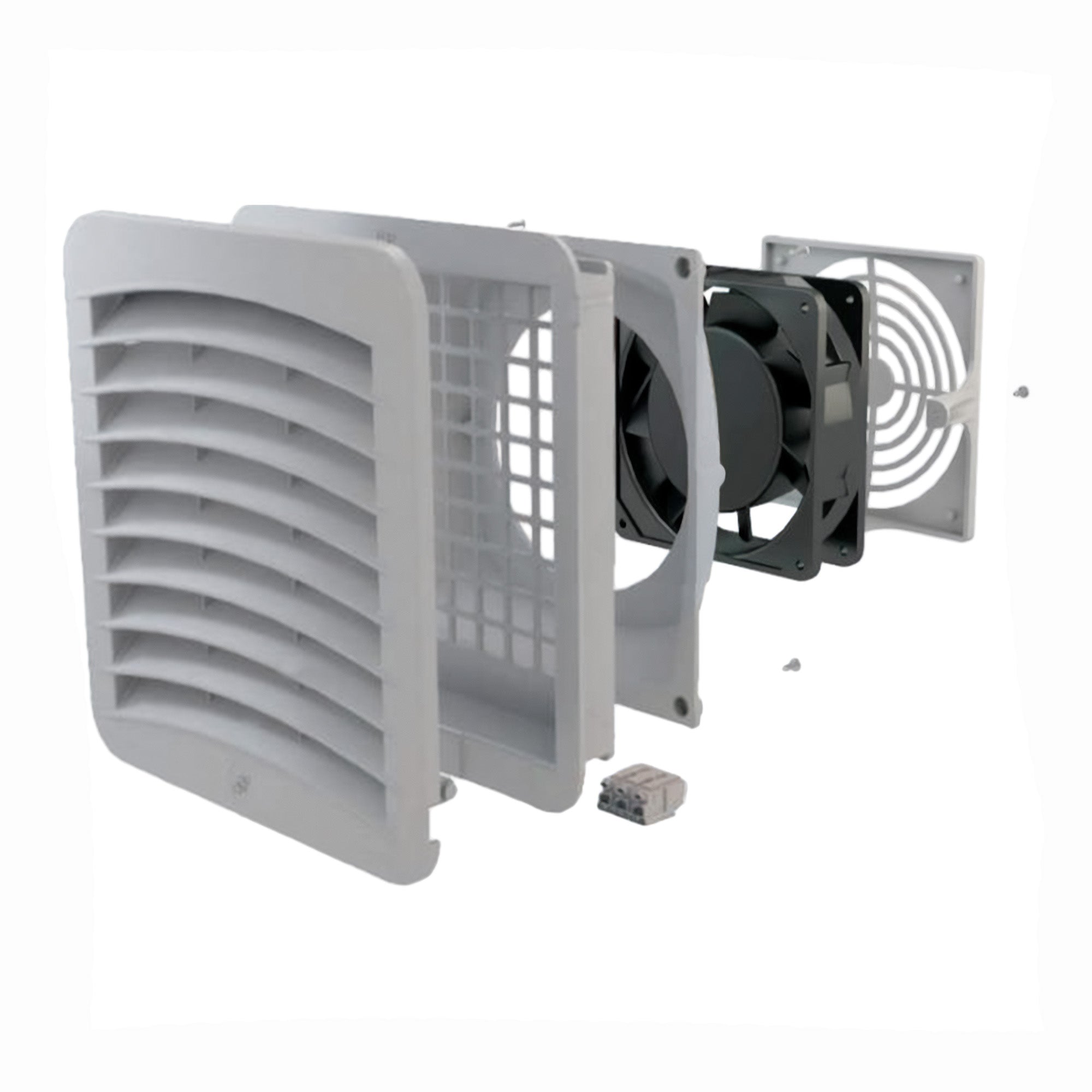

Easy maintenance and filter replacement
Protection Class: IP54 (NEMA-12)
Noise Level: 48-49 dB(A)
Electrical connections with spring terminals
MBTF: 40,000 hours
Operating Temperature: 14/140°F (-10/+60°C)
Approval: CE, cURus CSA, EAC

Specifications

Nominal Voltage: 115 VAC 50/60 Hz
Air Flow: 39 CFM (Free airflow)
Power/Current Absorbed: 20 W / 0.24 A
Protection Degree: NEMA-12 / IP54
Temperature Limits (°F): 14 °F to 158 °F
Temperature Limits (°C): −10 °C to +70 °C
Noise Level: 49 dB(A)
Reversible Fan: Yes
Housing Material: ABS plastic (Self-extinguishing, UL94V-0; Machinery grey RAL7035)

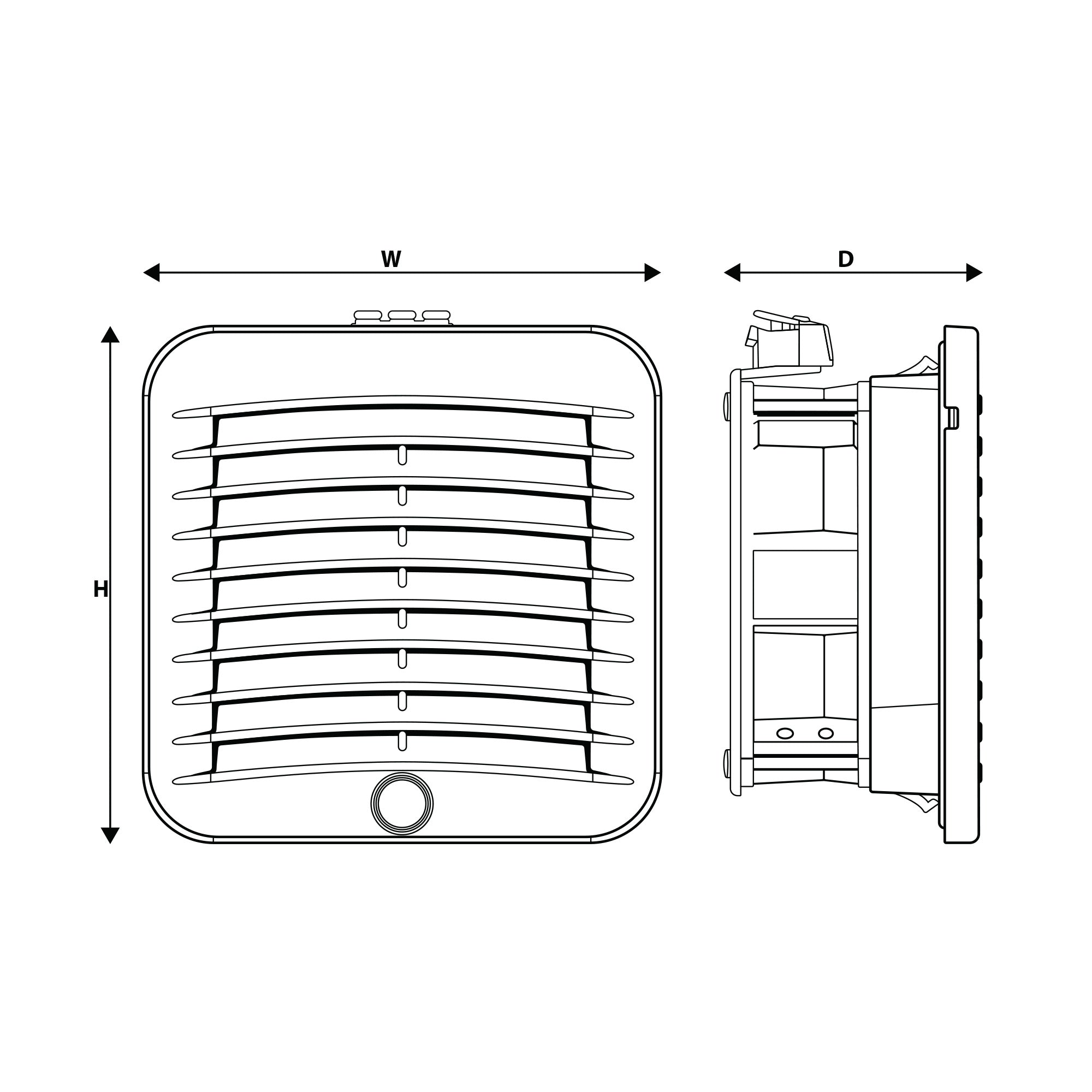

Dimensions (Inch): 6 × 6 × 3.5″
Dimensions (mm): 152 × 152 × 75 mm
Approvals: cUL E194444

Model Types

GSV1500220 6" Filter Fan, 230 VAC, 39cfm
GSV1500203 6" Filter Fan, 115 VAC, 39cfm
GSV1500211 6" Filter Fan, 24DC, 39cfm
GSF15 6" Exhaust Filter
