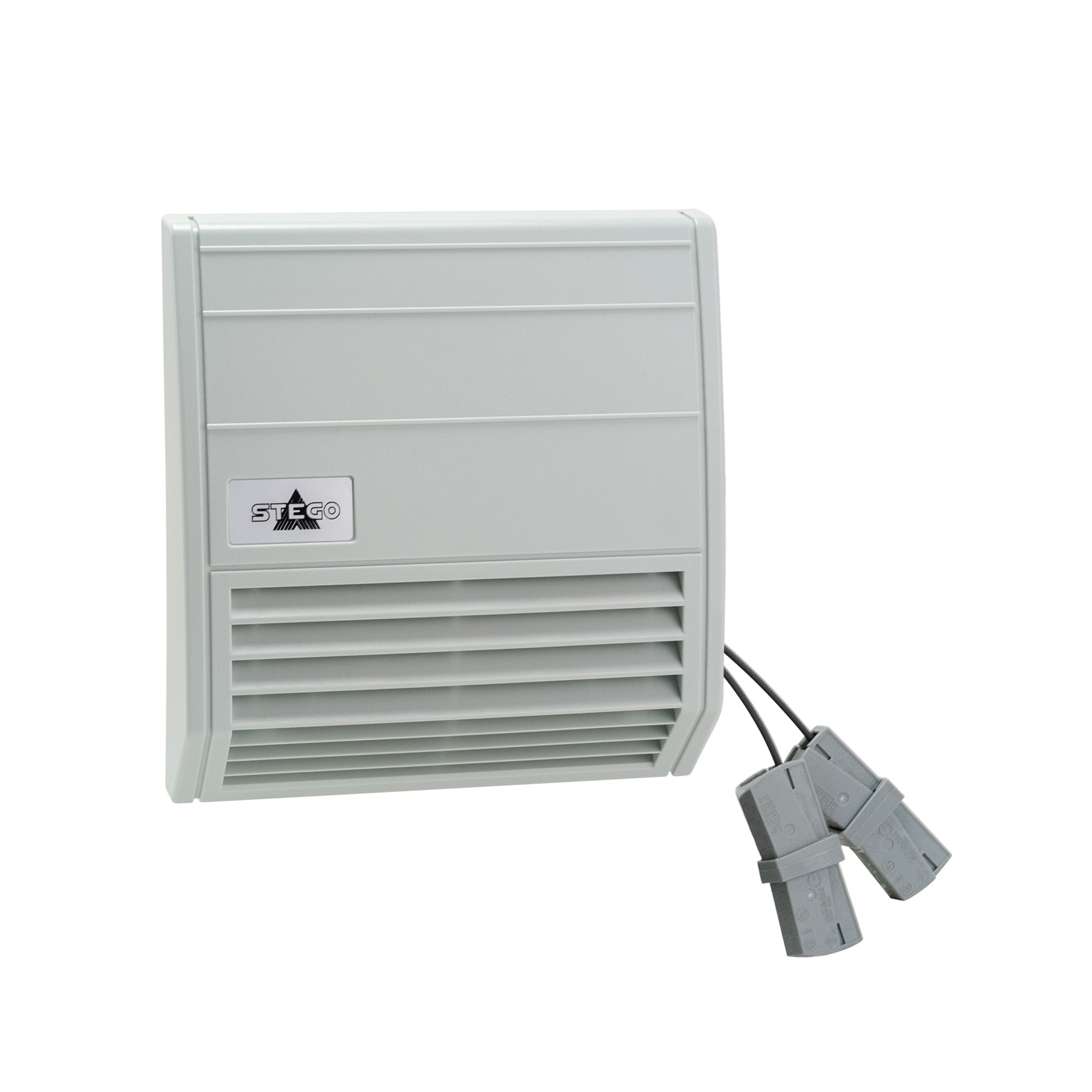

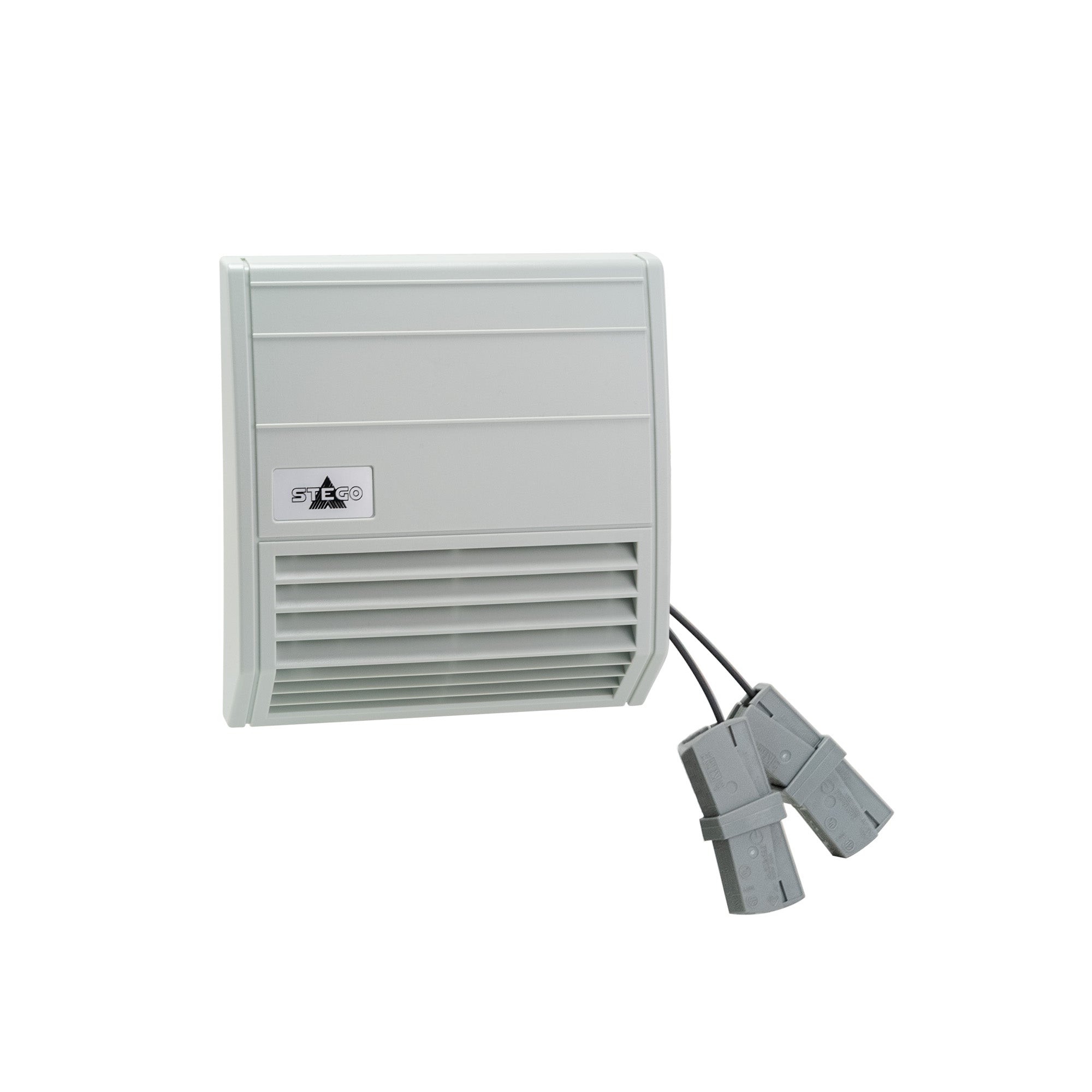

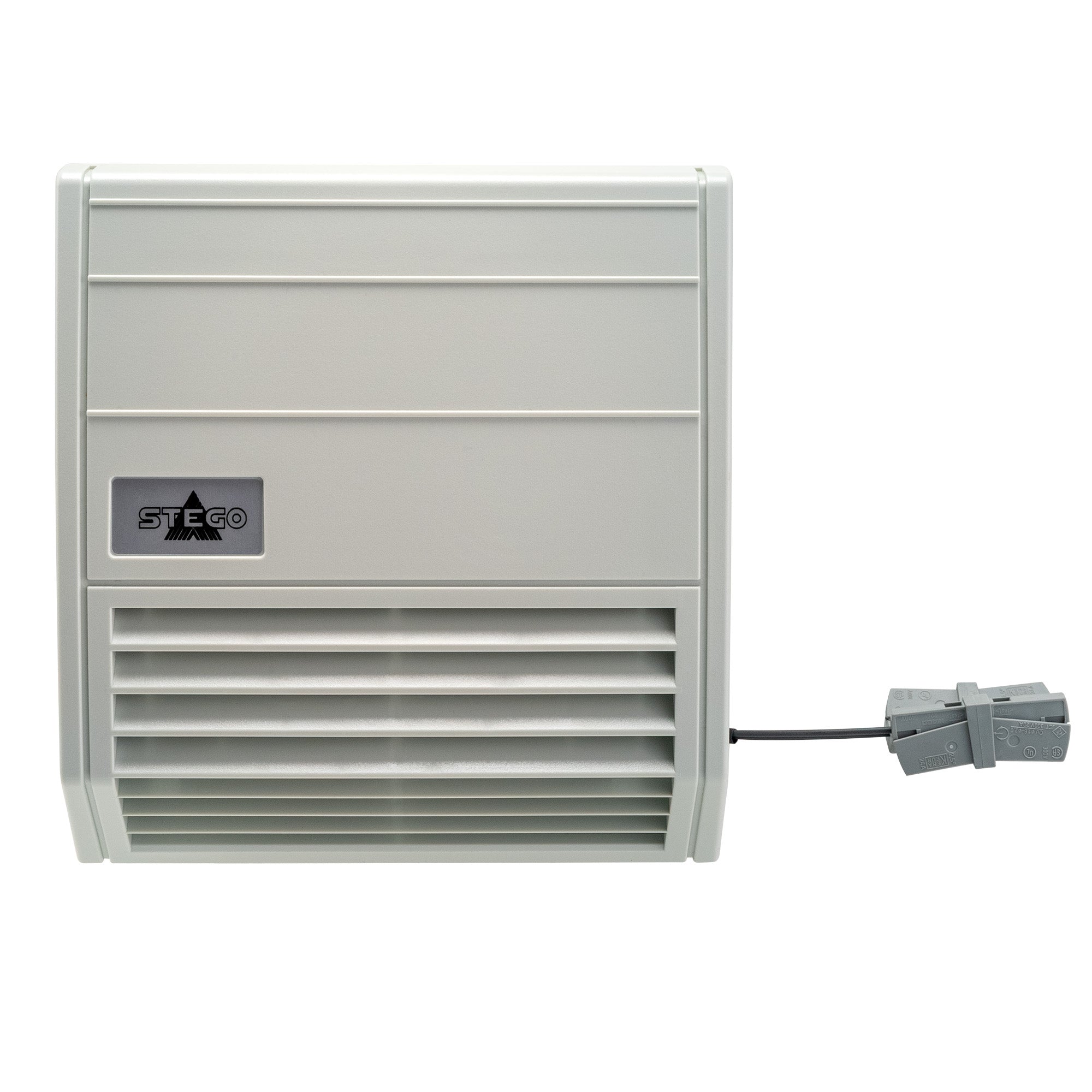

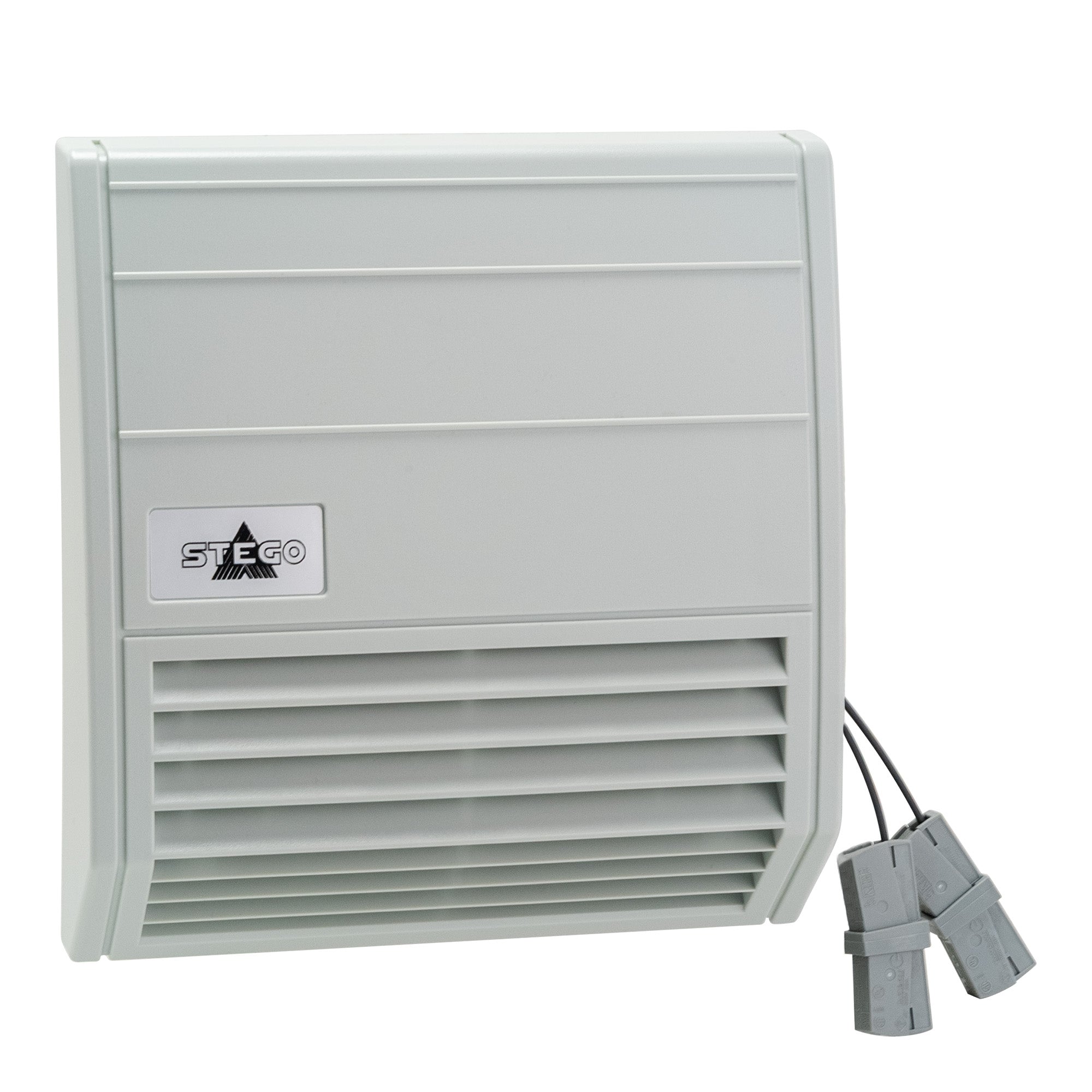

4" to 7" Enclosure Filter Fan 14 to 69 CFM

Filter fans are used to provide an optimum climate in enclosures. The interior temperature of an enclosure can be reduced by channeling cooler filtered outside air into the enclosure thus expelling heated internal air. The resulting air flow prevents formation of localized hot pockets and protects the electronic components from overheating. The plastic used for the hood of this filter fan series is highly weather proof and UV light resistant.

Features

Very Low Noise
Minimal mounting depth
Functional design
Time-saving installation
Weather proof and UV resistant
Protection: IP54 (using fine filter type F5 increases to IP55)
Self-adhesive seal prevents dust and water from entering cabinet
Direction of airflow can easily be switched

Specifications

Free Blowing Air Flow: 12 cfm (21 m³/h)
Voltage: 230 VAC
Environmental Ratings: UL Type 1 / IP55
Agency Approvals: UL, VDE
Version: Standard
Air Flow with Exit Filter: 9 cfm (16 m³/h)
Power Consumption: 13 W
Current Consumption: 800 mA
Average Noise Level at 3 Ft. (DIN EN ISO 4871): 31 dB(A)

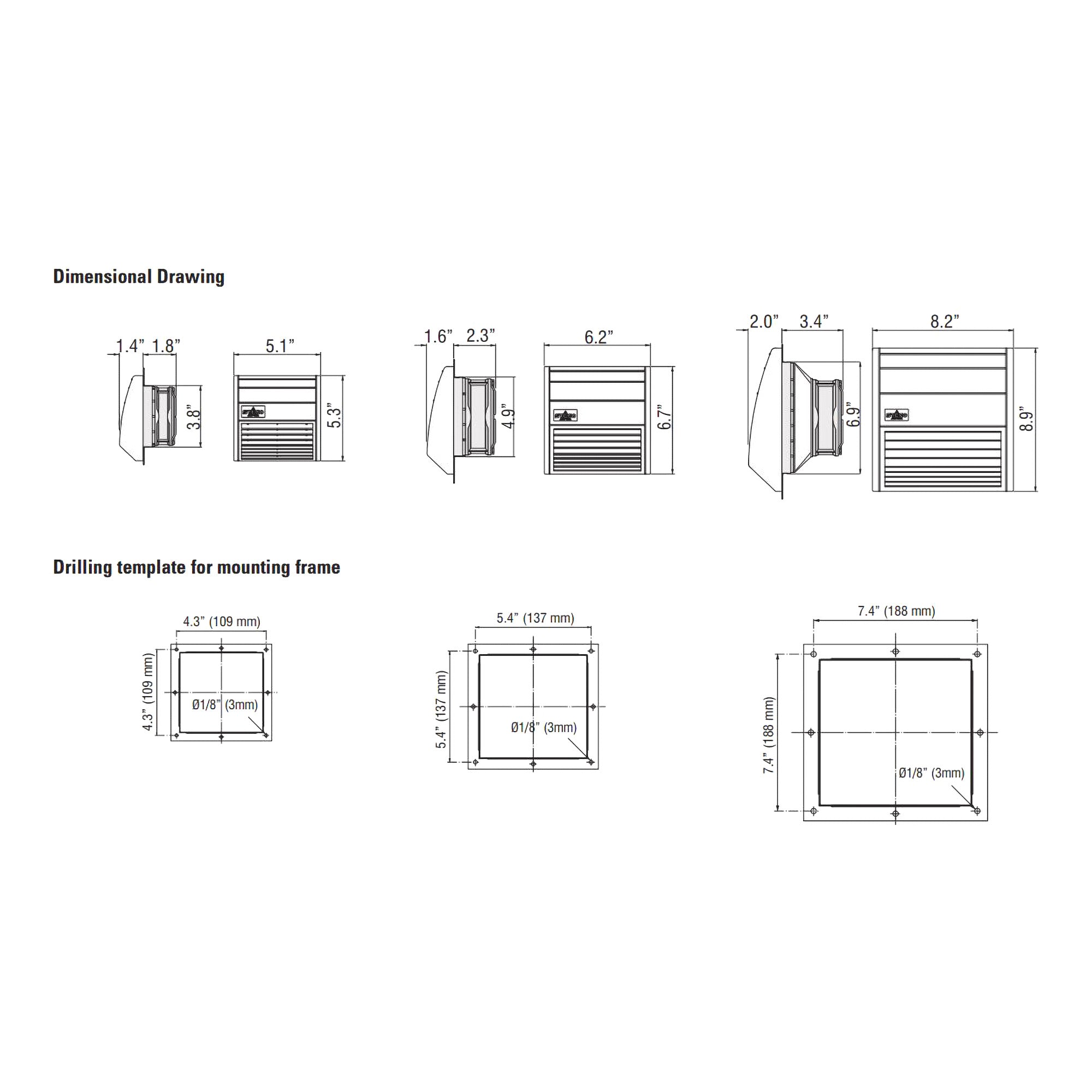

Grill Size: 5 × 5 inch
Enclosure Cut‑Out: 3.8 × 3.8 inches (97 × 97 + 0.4 mm)
Mounting Depth: 1.8 inches (45 mm)
Weight: 1.2 lb. (0.54 kg)
Filter Fan Housing: Plastic, UL 94V‑0, light gray
Filter Fan Hood: Plastic, UL 94V‑0, light gray, weather proof and UV light resistant (UL 746C f1)

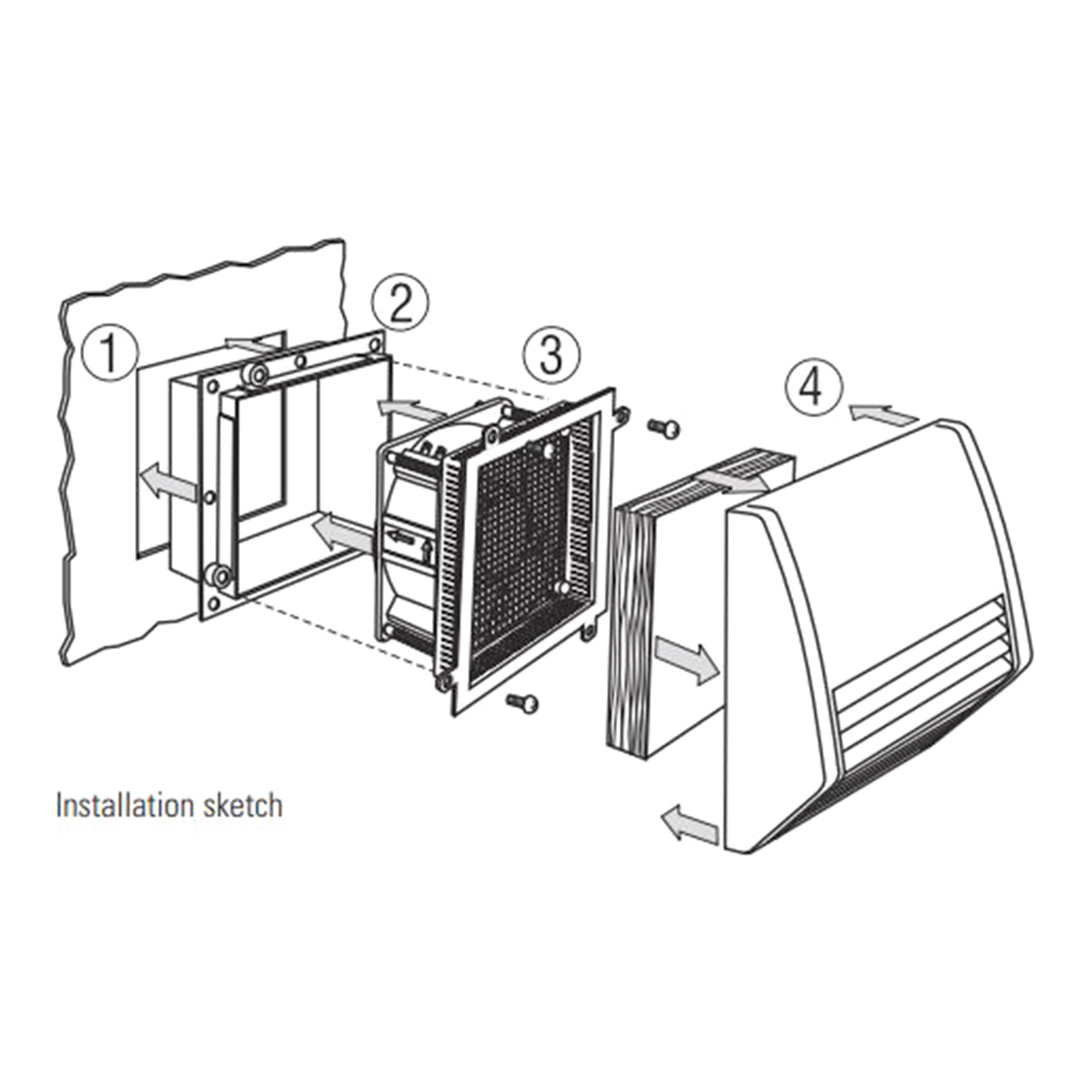

Mounting Frame: With double‑sided industrial adhesive band for affixing to the outside of enclosure; Screws may be used if necessary

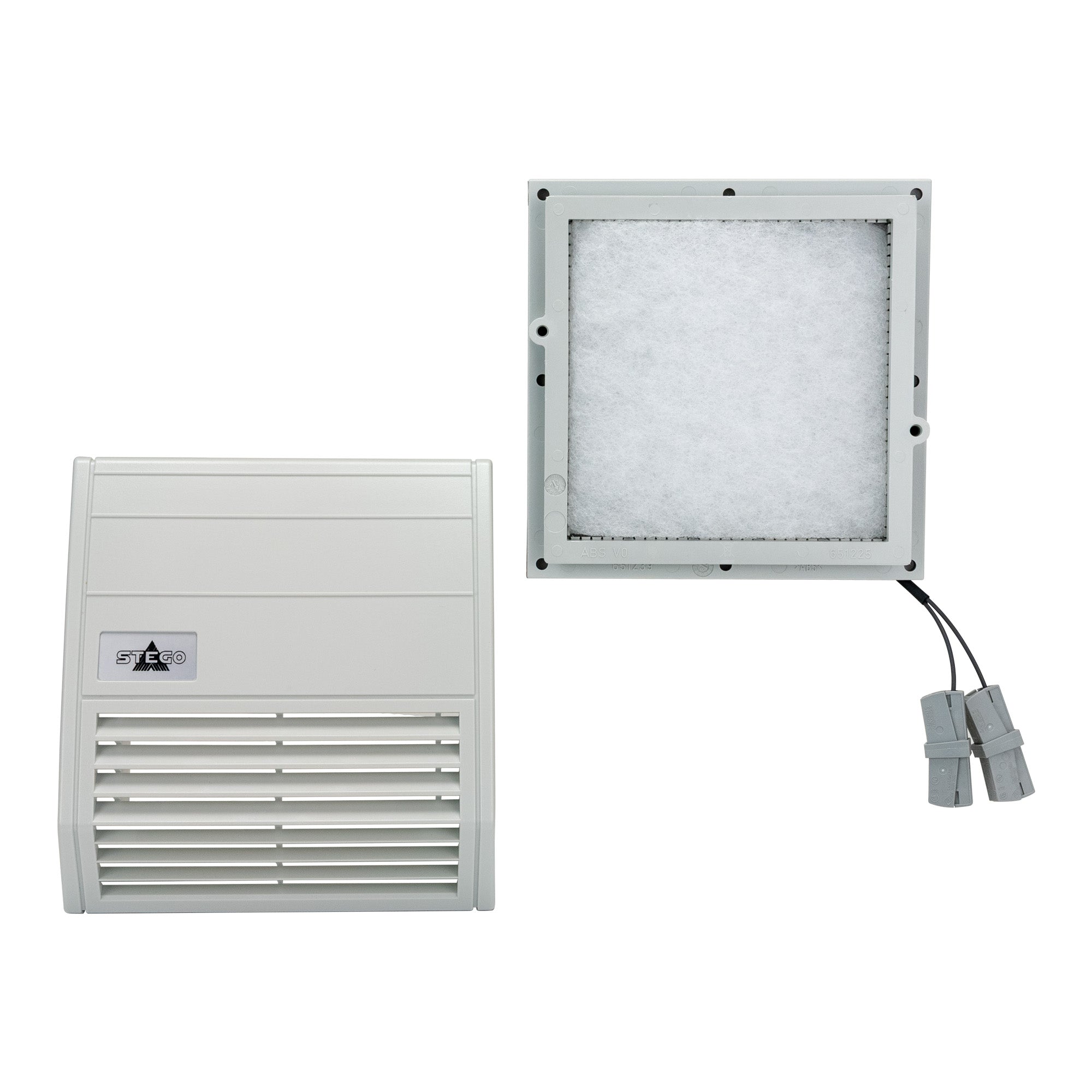

Filter Mat: Medium grade 350 g/m², filtering degree 94 % for particle Ø < 10 µm, G4 (EN 779)
Filter Material: Synthetic fiber with progressive construction, temperature resistant to 212 °F, self‑extinguishing class F1, moisture resistant to 100 % RH; can be cleaned for reuse

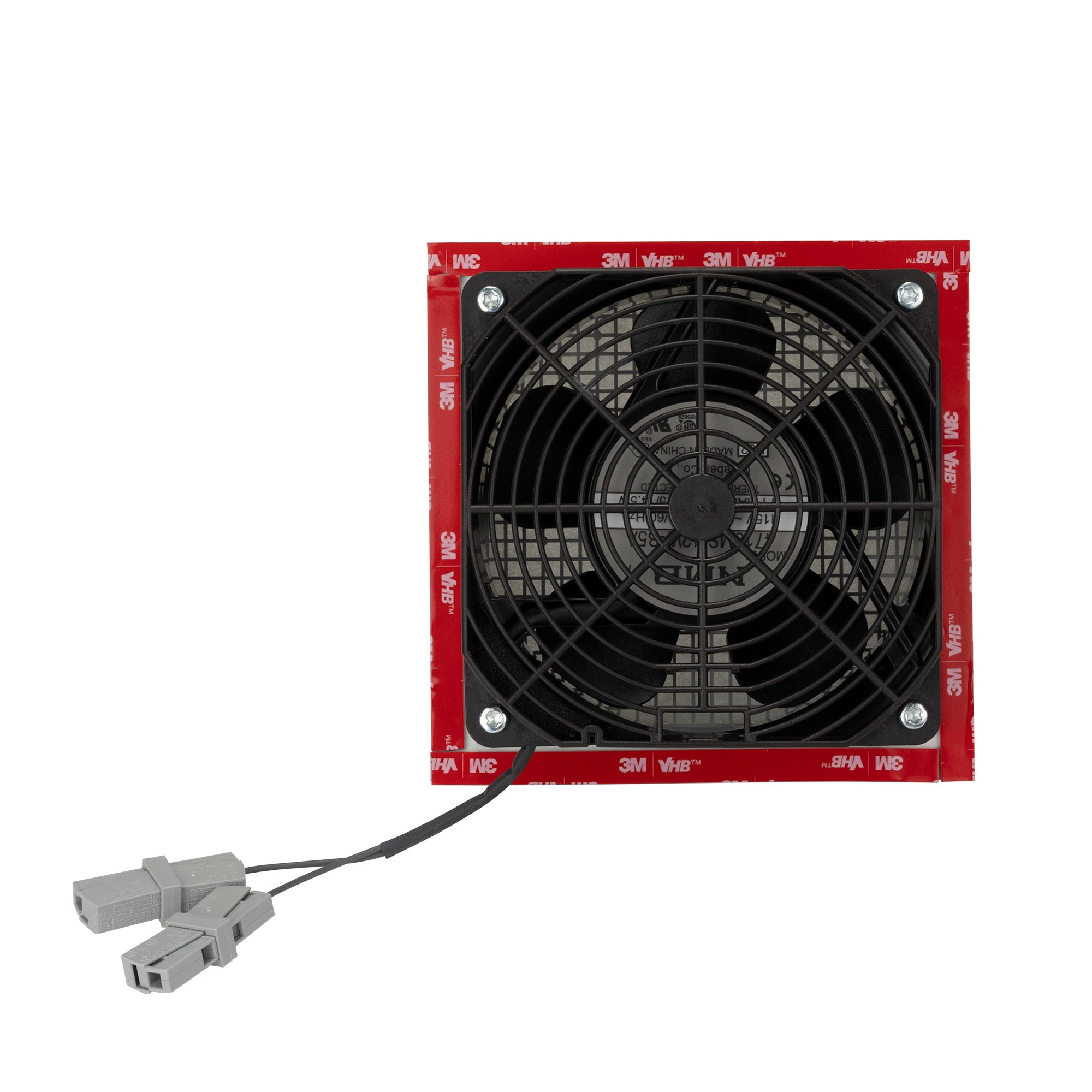

Axial Fan, Ball Bearing: Aluminum frame, plastic impeller UL 94V‑0; operational life min. 50,000 h at 77 °F (RH 65 %); operating temperature ‑49 °F to 158 °F; 2 lead wires (4″) w/ pressure clamps, AWG 14 max
Connection: 2 wires w/ cage clamps, AWG 14 (2.5 mm²), length 4″ (100 mm)
Operating Temperature: 14 to 158 °F (‑10 to 70 °C)
Storage Temperature: ‑40 to 158 °F (‑40 to 70 °C)
Protection Class: I (Grounded)

Model Types

01800.0-00 4" Filter Fan 230 VAC, 12 cfm Air Volume
01800.0-01 4" Filter Fan 120 VAC, 14 cfm Air Volume
01801.0-00 6" Filter Fan 230 VAC, 32 cfm Air Volume
01801.0-01 6" Filter Fan 120 VAC, 37 cfm Air Volume
01802.0-00 8" Filter Fan 230 VAC, 60 cfm Air Volume
01802.0-01 8" Filter Fan 120 VAC, 69 cfm Air Volume
01803.0-00 10" Filter Fan 230 VAC, 177 cfm Air Volume
01803.0-01 10" Filter Fan 120 VAC, 202 cfm Air Volume
01804.0-00 8" Filter Fan 230 VAC, 118 cfm Air Volume
01804.0-01 8" Filter Fan 120 VAC, 136 cfm Air Volume
01805.0-00 10" Filter Fan 230 VAC, 324 cfm Air Volume
01805.0-01 10" Filter Fan 120 VAC, 373 cfm Air Volume
