4" Enclosure Filter Fan 20 to 29 CFM Reversible Air Flow

The GS filter fans, for the ventilation of electrical enclosures, are the optimal solution when the ambient temperature is lower than the temperature inside the cabinet, and can be installed, thanks to their reduced depth, on various types of panels. Together with a new modern design, GS filter fans offer the same wide range of sizes and power supplies as previous generations, allowing you to choose the most suitable solution for your installation and geographical area.

Features

4" Enclosure Filter Fans
Single Hole Cutout, Snap-In Installation
Air Flow 20-29 cfm
Reversible air flow by reversing fan
Easy maintenance and filter replacement
Protection Class: IP54 NEMA-12
Noise Level: 33-53 dB(A)
Electrical connections with spring terminals
MBTF: 40,000 hours
Operating Temperature: 14/158°F (-10/70°C)
Approval: CE, cURus, CSA, EAC

Specifications

Nominal Voltage: 230 VAC 50/60 Hz
Air Flow: 25 CFM (Free airflow)
Power/Current Absorbed: 4.6 W / 0.21 A
Protection Degree: NEMA-12 / IP54
Temperature Limits (°F): 14 °F to 158 °F
Temperature Limits (°C): -10 °C to 70 °C
Noise Level: 33 dB(A)
Reversible Fan: Yes
Housing Material: ABS plastic

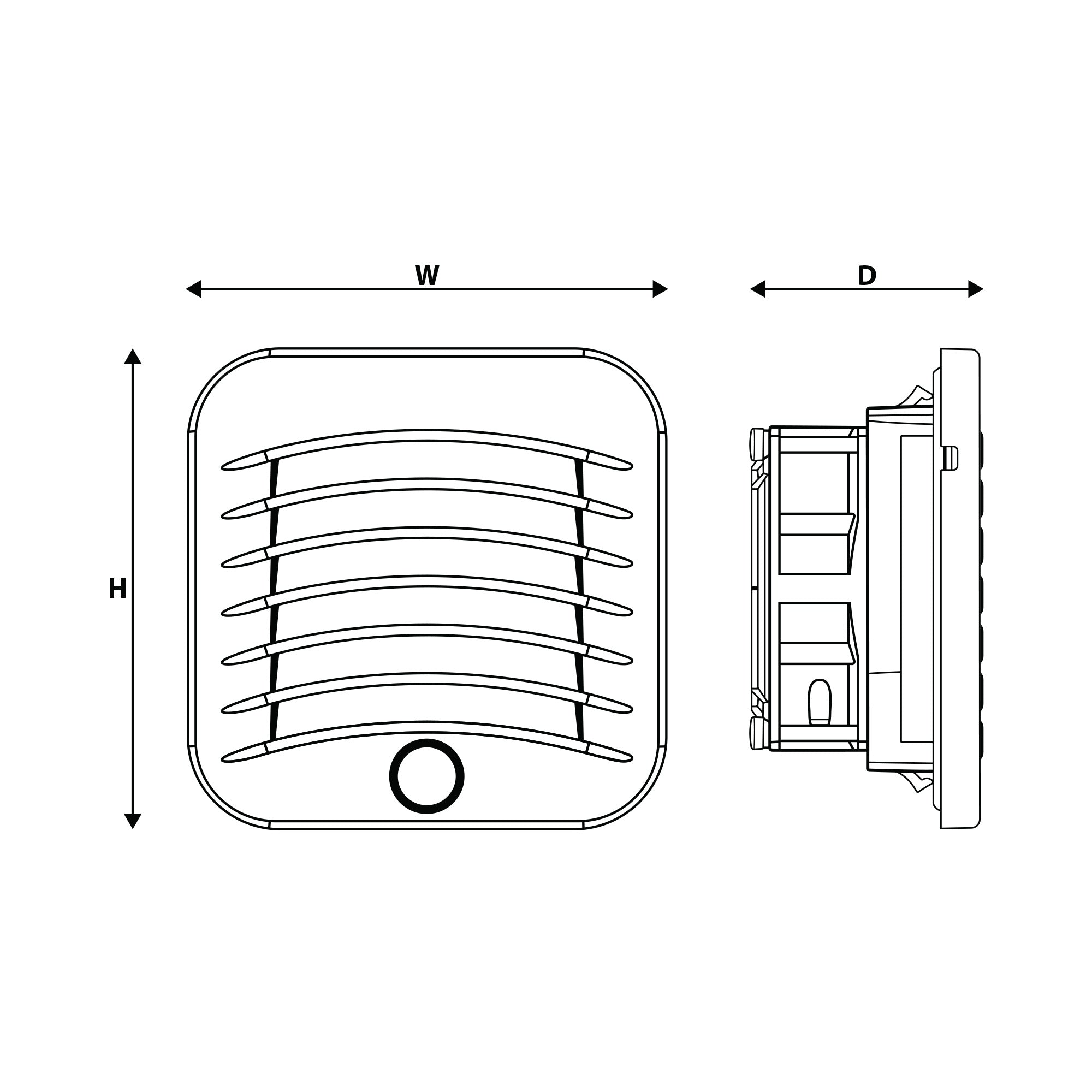

Dimensions (inch): 4.7 × 4.7 × 2¼″
Dimensions (mm): 119 × 119 × 57 mm
Approvals: cUL E194444

Model Types

GSV1000220 4" Filter Fan, 230 VAC, 21 cfm
GSV1000203 4" Filter Fan, 115 VAC, 21 cfm
GSV1000211 4" Filter Fan, 24DC, 29 cfm
GSF10 4" Exhaust Filter
