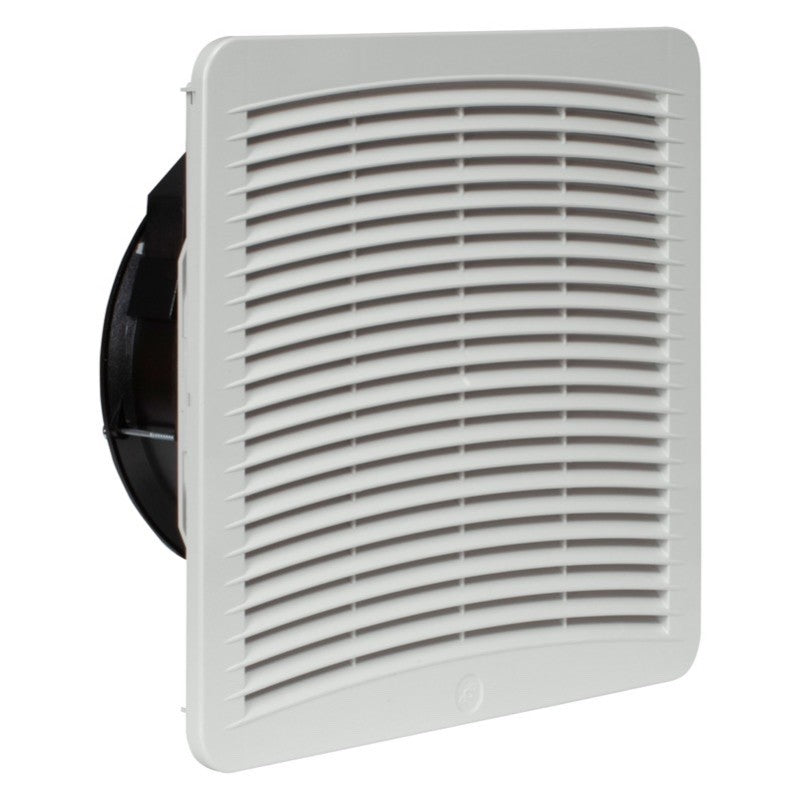

12" Enclosure Filter Fan 412 to 500 CFM Reversible Air Flow

The GS filter fans, for the ventilation of electrical enclosures, are the optimal solution when the ambient temperature is lower than the temperature inside the cabinet, and can be installed, thanks to their reduced depth, on various types of panels. Together with a new modern design, GS filter fans offer the same wide range of sizes and power supplies as previous generations, allowing you to choose the most suitable solution for your installation and geographical area.

Features

12" Enclosure Filter Fans
Single Hole Cutout, Snap-In Installation or Screw Mount
Air Flow 470 cfm

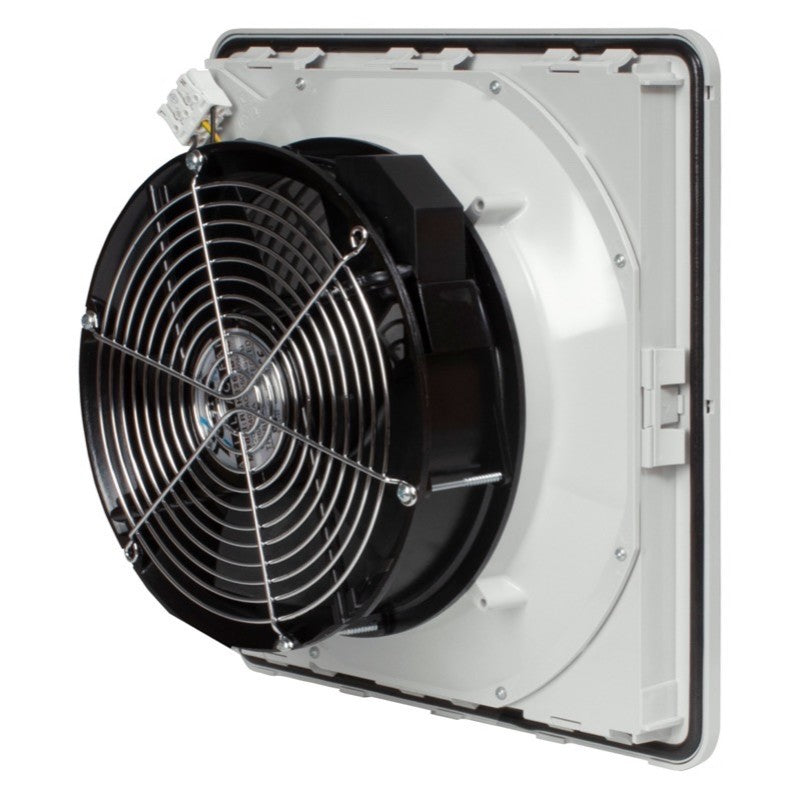

Reversible air flow by reversing fan
Easy maintenance and filter replacement
Protection Class: IP54 (NEMA-12)
Electrical connections with spring terminals
Noise Level: 62 dB(A)
MBTF: 40,000 hours
Operating Temperature: 14/140°F (-10/+60°C)
Approval: CE, cURus, CSA, EAC

Specifications

Nominal Voltage: 115 VAC 50/60 Hz
Air Flow (Free Blowing): 412 CFM (700 m³/h)
Reversible Fan: Yes
Power/Current Absorbed: 160 W / 1.42 A
Operating Temperature (°F): 14 °F to 140 °F
Operating Temperature (°C): -10 °C to +60 °C (cabinet air) / -25 °C to +50 °C (Fan)
Housing Material: High-resistance, Self-extinguishing ABS UL94V-0 plastic (machinery grey RAL7035)

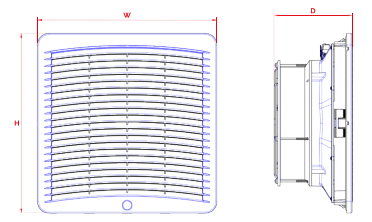

Dimensions (Inch): 12½ × 12½ × 5½″
Dimensions (mm): 318 × 318 × 135 mm
Ball Bearing Motor MTBF: 40,000 hours

Model Types

GSV3001203 12" Enclosure Filter Fan, 230VAC, 412 cfm
GSV3002203 12" Enclosure Filter Fan, 115VAC, 500 cfm

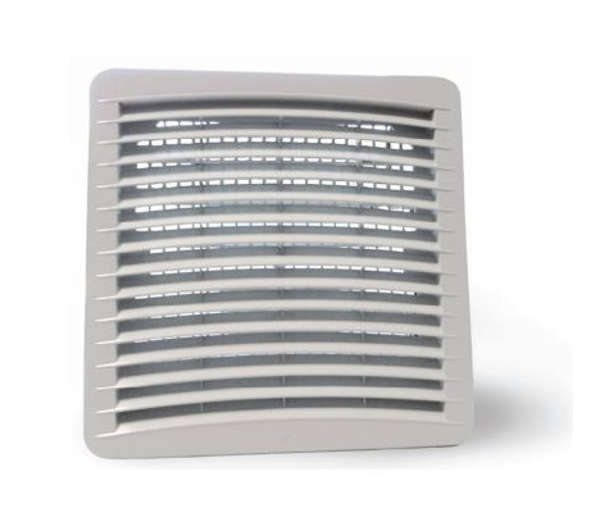

GSF30 12" Exhaust Filter
