12" Enclosure Filter Fan 294 CFM Reversible Air Flow

The GS filter fans, for the ventilation of electrical enclosures, are the optimal solution when the ambient temperature is lower than the temperature inside the cabinet, and can be installed, thanks to their reduced depth, on various types of panels. Together with a new modern design, GS filter fans offer the same wide range of sizes and power supplies as previous generations, allowing you to choose the most suitable solution for your installation and geographical area.

Features

12" Enclosure Filter Fans
Single Hole Cutout, Snap-In Installation or Screw Mount
Air Flow 294 cfm
Reversible air flow by reversing fan
Easy maintenance and filter replacement
Protection Class: IP54 (NEMA-12)
Electrical connections with spring terminals
Noise Level: 62 dB(A)
MBTF: 40,000 hours
Operating Temperature: 14/140°F (-10/+60°C)

Specifications

Nominal Voltage: 115 VAC 50/60 Hz
Power/Current Absorbed: 56 W / 0.46 A
Reversible Airflow: Yes
Operating Temperature (°F): 14 °F to 140 °F
Operating Temperature (°C): -10 °C to +60 °C
Housing Material: High-resistance, self-extinguishing ABS UL94V-0 plastic

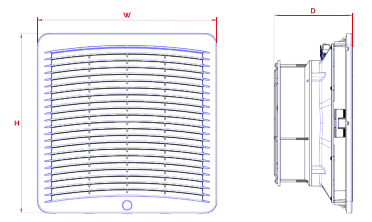

Dimensions (inch): 12½ × 12½ × 5½″
Dimensions (mm): 318 × 318 × 139 mm
Ball Bearing Motor MTBF: 40,000 hours
Approvals: cUL E194444 (UL/CSA)
