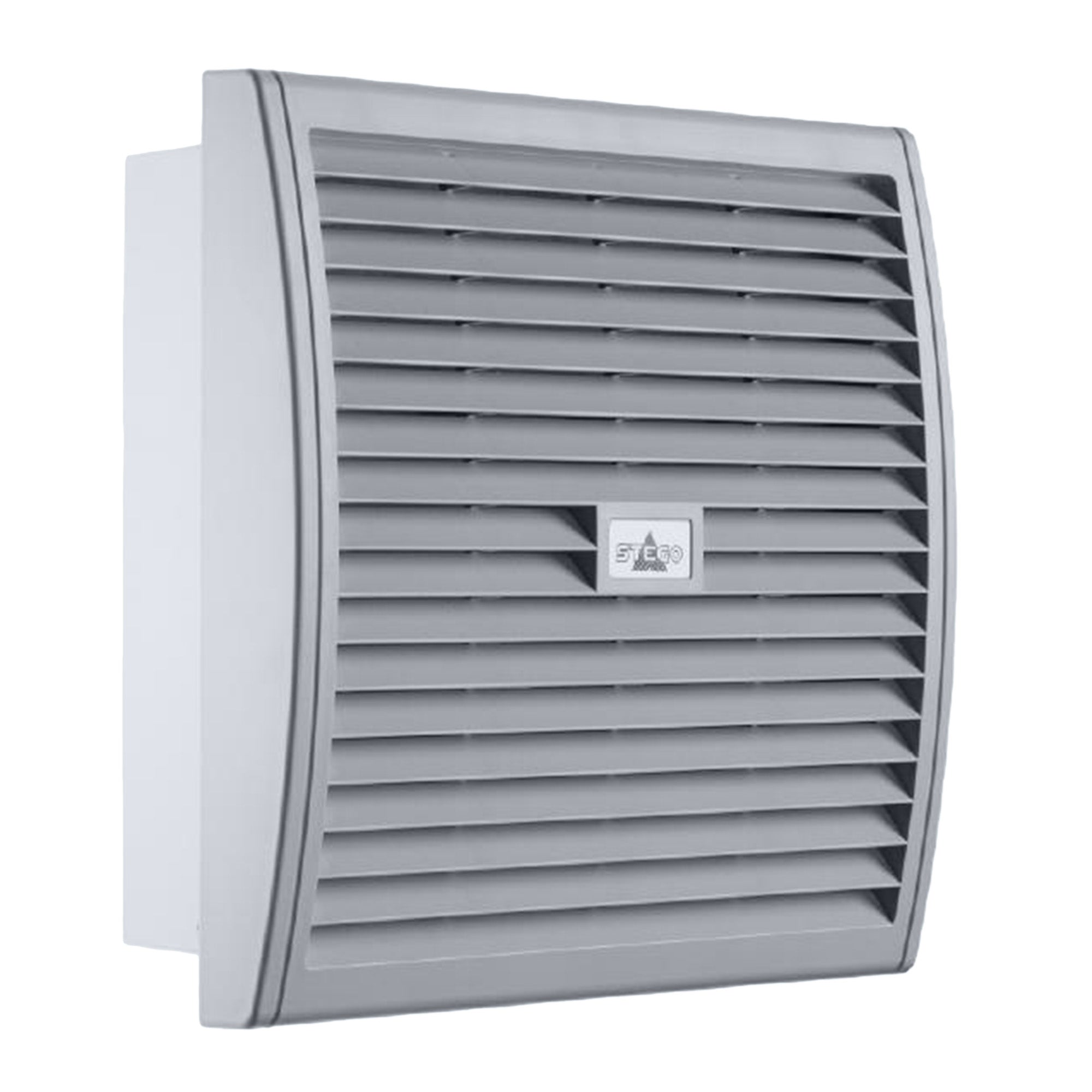

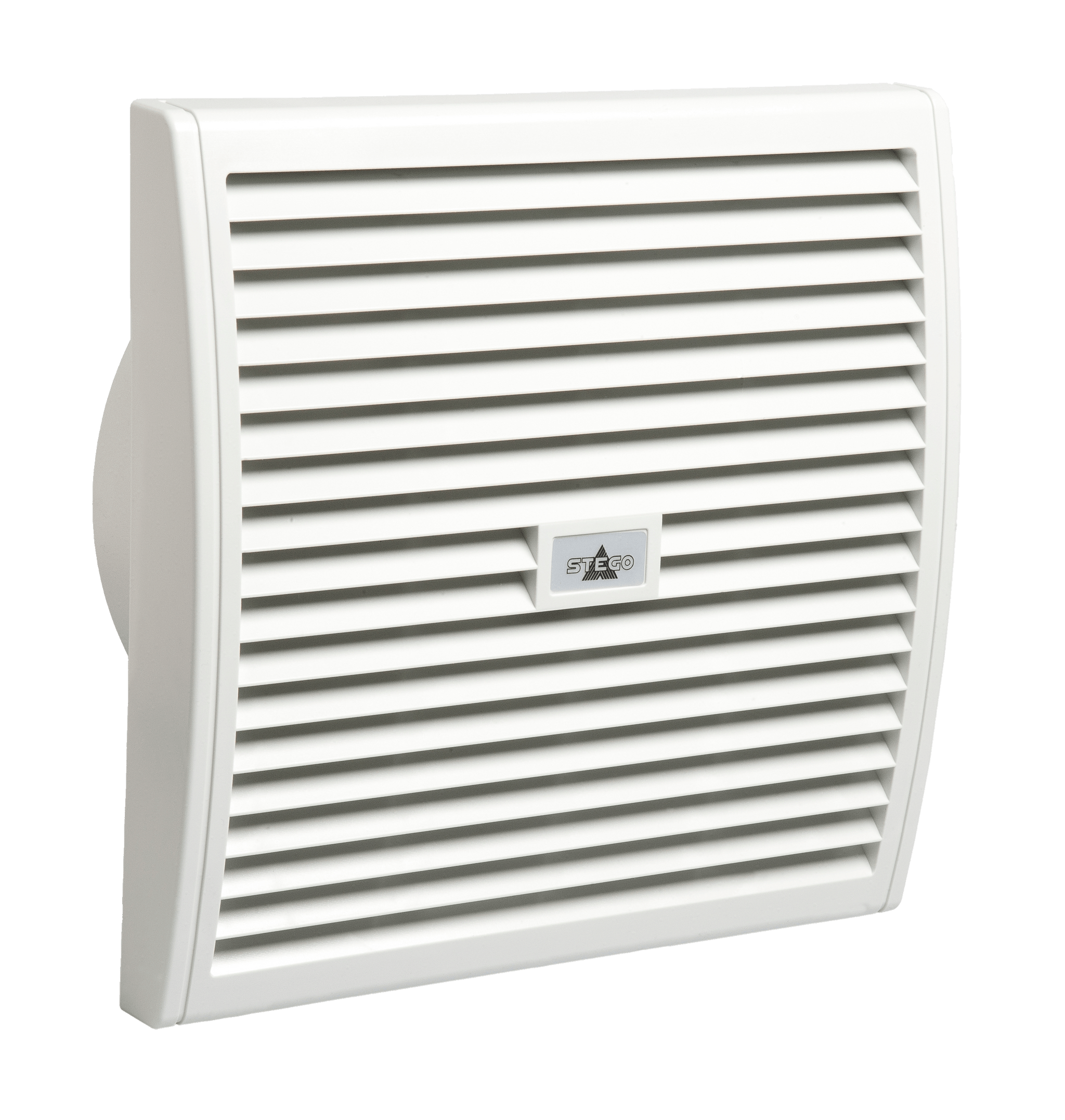

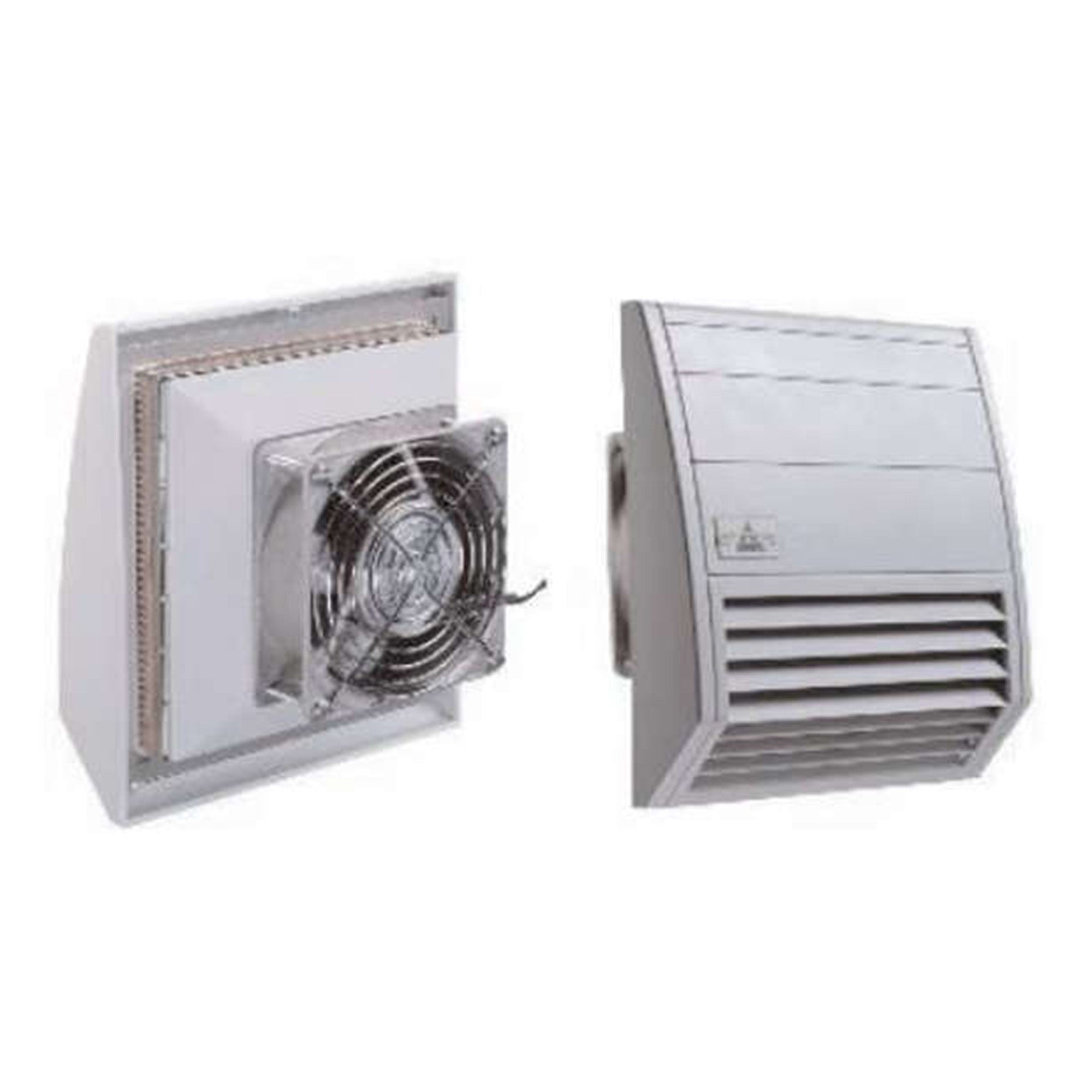

10 Inch Enclosure Filter Fan 202 to 373 CFM

Filter fans are used to provide an optimum climate in enclosures. The interior temperature of an enclosure can be reduced by channeling cooler filtered outside air into the enclosure thus expelling heated internal air. The resulting air flow prevents formation of localized hot pockets and protects the electronic components from overheating. The plastic used for the hood of this filter fan series is highly weather proof and UV light resistant.

Features

Very Low Noise
Minimal mounting depth
Functional design

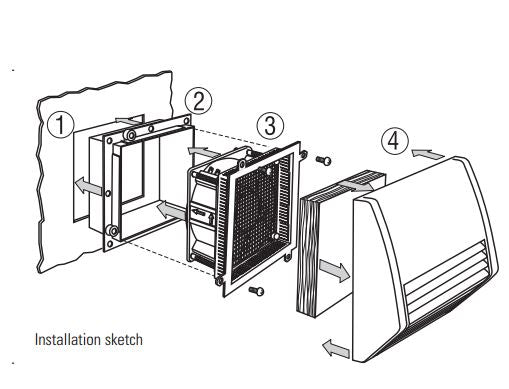

Time-saving installation
Weather proof and UV resistant
Protection: IP54 (using fine filter type F5 increases to IP55)
Self-adhesive seal prevents dust and water from entering cabinet
Direction of airflow can easily be switched

Specifications

Operating Voltage: 230 VAC
Free Blowing Air Flow: 177 cfm (300 m³/h)
Air Flow with Exit Filter: 135 cfm (230 m³/h)
Power Consumption: 60 W
Current Consumption: 400 mA
Grill Size: 11 × 11 inch
Enclosure Cut‑Out: 9.8 × 9.8 inches (250 × 250 + 0.4 mm)
Mounting Depth: 2.6 inches (65 mm)
Weight: 7.3 lb. (3.3 kg)
Filter Fan Housing: Plastic, UL 94V‑0, light gray
Filter Fan Hood: Plastic, UL 94V‑0, light gray, weather proof & UV resistant (UL 746C f1)
Mounting Frame: With double‑sided industrial adhesive band (screws optional)
Filter Mat: Medium grade 350 g/m², 94 % filtering (Ø < 10 µm), G4 (EN 779)
Filter Material: Synthetic fiber, temp resistant to 212 °F, UL 94 F1, moisture resistant to 100 % RH, cleanable/reusable
Axial Fan, Ball Bearing: Aluminum frame, plastic impeller, ≥ 50,000 h life at 77 °F (65 % RH); operating temp –49 °F to 158 °F
Connection: 3‑pole terminal, AWG 14 max (2.5 mm²)
Operating Temperature: 14 to 158 °F (‑10 to 70 °C)
Storage Temperature: -40 to 158 °F (‑40 to 70 °C)
Protection Class: I (Grounded)
Agency Approvals: UL

Model Numbers

01803.0-00 10" Filter Fan 230 VAC, 177 cfm Air Volume
01803.0-01 10" Filter Fan 120 VAC, 202 cfm Air Volume
01803.0-03 10" Filter Fan 24 VDC, 177 cfm Air Volume
01804.0-04 10" Filter Fan 48 VDC, 177 cfm Air Volume
01805.0-00 10" Filter Fan 230 VAC, 324 cfm Air Volume
01805.0-01 10" Filter Fan 120 VAC, 373 cfm Air Volume
01805.0-04 10" Filter Fan 48V DC, 324 cfm Air Volume
01805.0-05 10" Filter Fan 24V DC, 324 cfm Air Volume
