10" Enclosure Filter Fan 150 to 160 CFM Reversible Air Flow

The GS filter fans, for the ventilation of electrical enclosures, are the optimal solution when the ambient temperature is lower than the temperature inside the cabinet, and can be installed, thanks to their reduced depth, on various types of panels. Together with a new modern design, GS filter fans offer the same wide range of sizes and power supplies as previous generations, allowing you to choose the most suitable solution for your installation and geographical area.

Features

10" Enclosure Filter Fans
Single Hole Cutout, Snap-In Installation or Screw Mount
Air Flow 159 cfm
Reversible air flow by reversing fan
Easy maintenance and filter replacement
Protection Class: IP54
Electrical connections with spring terminals
Noise Level: 62 dB(A)
MBTF: 40,000 hours
Operating Temperature: 14/140°F (-10/+60°C)
Approval: CE, cURus, CSA, EAC

Specifications

Nominal Voltage: 115 VAC 50/60 Hz

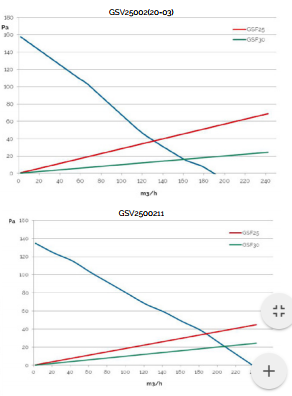

Air Flow (Free Blowing): 159 CFM (≈ 270 m³/h)
Reversible Airflow: Yes
Power/Current Absorbed: 56 W / 0.46 A
Operating Temperature (°F): 14 °F to 140 °F
Operating Temperature (°C): −10 °C to +60 °C
Housing Material: High-resistance, Self-extinguishing ABS UL94V-0 plastic (machinery grey RAL7035)

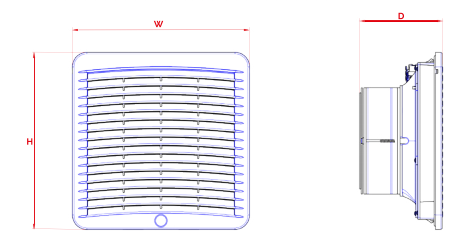

Dimensions (inch): 10 × 10 × 4″
Dimensions (mm): 250 × 250 × 99 mm
Ball Bearing Motor MTBF: 40,000 hours

Model Types

GSV2501220 10" Enclosure Filter Fan, 230VAC, 159 cfm

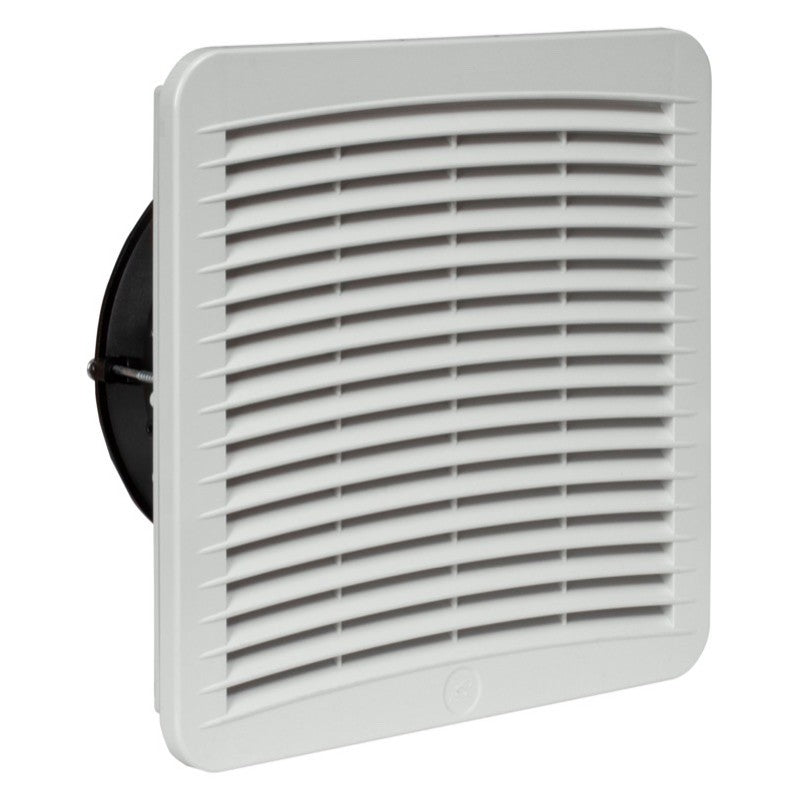

GSV2501203 10" Enclosure Filter Fan,115VAC, 159 cfm

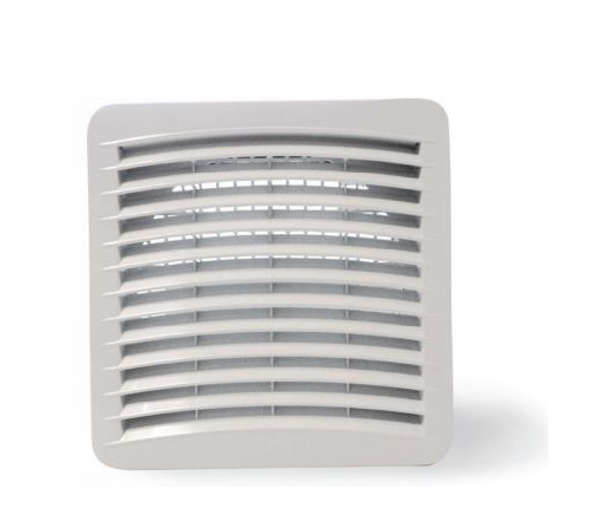

GSF25 10" Exhaust Filter
