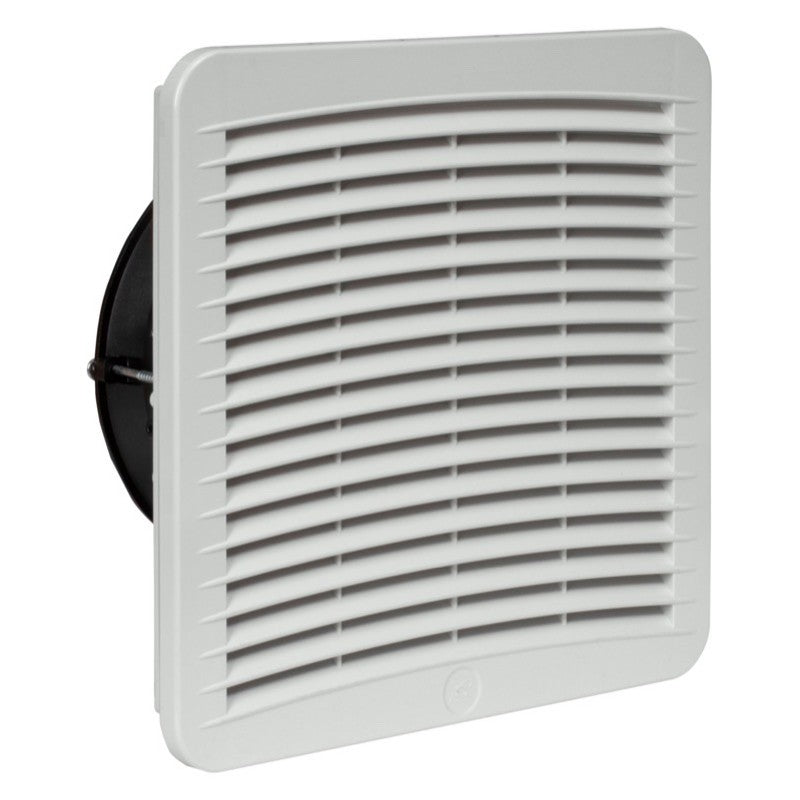

10" Enclosure Filter Fan 110 to 135 CFM Reversible Air Flow

The GS filter fans, for the ventilation of electrical enclosures, are the optimal solution when the ambient temperature is lower than the temperature inside the cabinet, and can be installed, thanks to their reduced depth, on various types of panels. Together with a new modern design, GS filter fans offer the same wide range of sizes and power supplies as previous generations, allowing you to choose the most suitable solution for your installation and geographical area.

Features

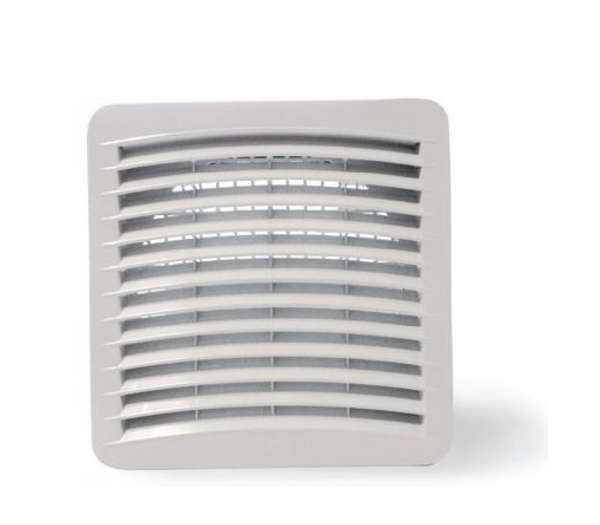

10" Enclosure Filter Fans
Single Hole Cutout, Snap-In Installation or Screw Mount
Air Flow 110-135 cfm
Reversible air flow by reversing fan
Easy maintenance and filter replacement
Protection Class: IP54 (NEMA-12)
Electrical connections with spring terminals
Noise Level: 55-59 dB(A)
MBTF: 40,000 hours
Operating Temperature Limits: 14/140°F (-10/+60°C)
Approval: CE, cURus, EAC, CSA

Specifications

Nominal Voltage: 115 VAC 50/60 Hz
Air Flow: 112 CFM (Free airflow)
Reversible Airflow: Yes
Housing Material: High-resistance, Self-extinguishing ABS UL94V-0 plastic (Machinery grey RAL7035)
Mounting: Snap-in or screw mount (Single hole cutout)
Ball Bearing Motor MTBF: 40,000 hours

Model Types

GSV2500220 10" Enclosure Filter Fan, 230 VAC, 112 cfm
GSV2500203 10" Enclosure Filter Fan, 115 VAC, 112 cfm
GSV2500211 10" Enclosure Filter Fan, 24 DC, 135cfm
GSF25 10" Exhaust Filter
