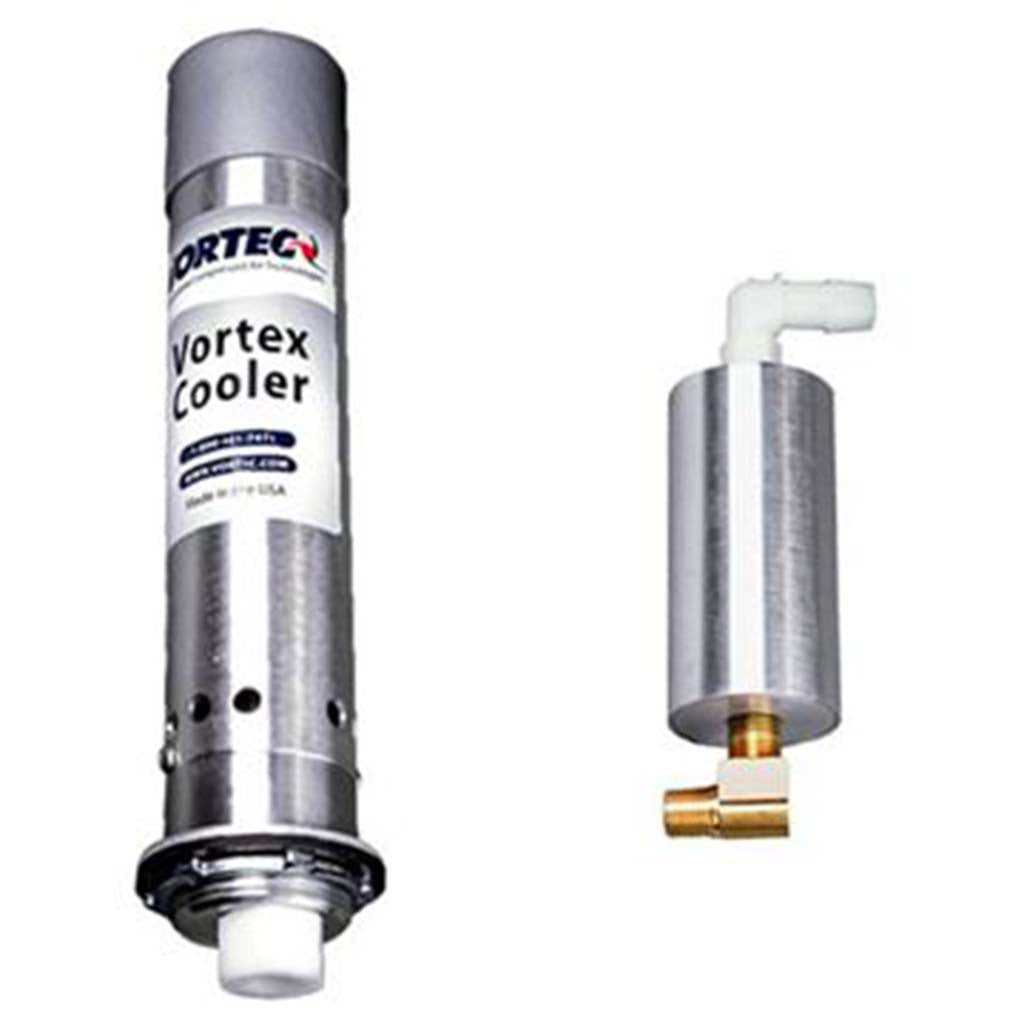

Vortex Enclosure Coolers Thermostat Controlled NEMA 12

Standard Vortex Enclosure Coolers are available in NEMA 12, NEMA 4, and NEMA 4X versions, and can be purchased with an electric thermostat or without a thermostat (constant run). The electrical cabinet cooling thermostat model maintains tight control on the temperature setpoint of +/- 3 degrees F. Vortex electric enclosure cooling systems are available in cooling capacities ranging from 400 BTU/hr to 5000 BTU/hr.

Enclosure Air Coolers keep Electrical and Electronic Enclosures cool, clean, and protected and are a low-cost alternative to expensive, high-maintenance air conditioners; and avoid contamination with dirty, humid air caused by fans.

Today’s small, compact multi-function electronic controls, variable speed drives, servos, and programmable logic controllers are extremely sensitive to heat and contamination. Smaller cabinet sizes make temperature control difficult and prone to premature failures. Excessive heat will cause digital displays to misread, controls to drift, and breakers to trip below-rated loads. The result is productivity lost due to machine or line shutdowns.

Vortex Enclosure Coolers maintain a slight pressurization in the cabinet to keep electrical and electronic components clean and dry, and most are thermostatically controlled to maintain enclosure temperatures within a specified temperature range.

Features

Small footprint to fit on all enclosures and in confined areas
Electrical thermostat models can be set to desired temperature +/- 3 deg F
Supplied with air filter and ducting kit
Maintains slight pressurization in the enclosure

Benefits

Thermostatically controlled models maintain enclosure temperatures within ideal range
No ambient, dirty or humid air enters the cabinet
Can be used on all cabinets, even in tight spaces
No wiring required to install most models
Operates in environments up to 175 degrees F
Low cost, compared to Freon air conditioners
Thermostatically controlled models reduce operating cost
Multiple cooling capacities available, to optimize performance and operating cost
Little maintenance required, as compared to Freon A/C and fans
Use no refrigerants

Specifications

Product Series: Vortec Vortex Coolers (7x0 / 7x1 / 7x5 Series)
Product Type: Compressed air–powered enclosure cooler
Cooling Method: Vortex tube cooling (No refrigerants)
Power Source: Compressed air
Electrical Power Requirement: None for cooler operation (Electric thermostat optional on some kits)
Cooling Capacity Range: 400 to 5000 BTU/hr (Varies by model)
Enclosure Protection Rating: UL Type 12
Mounting Options: Top mount or side mount on enclosure
Mounting Orientation: Vertical recommended
Installation Cutout Size: 1-1/8 in (3/4 in knockout size)
Cooling Control Options: No thermostat, preset thermostat, or electric thermostat (varies by kit)
Compressed Air Supply Requirement: Clean, dry, filtered compressed air
Required Filtration: 5 micron or smaller air filter
Maximum Compressed Air Pressure: 150 psig (10.3 bar)
Maximum Compressed Air Temperature: 110 °F (43 °C)
Cold Air Distribution: Internal ducting kit (Included with complete kits)
Hot Air Exhaust: Vented to ambient through built-in relief valve
Internal Enclosure Pressure: Positive pressurization during operation
Housing Material: Industrial-grade metal construction
Moving Parts: None (Except thermostat/valve if supplied)
Maintenance Requirement: Filter element replacement only
Cabinet Sealing Requirement: All enclosure vents must be sealed
Safety Considerations: Do not exceed pressure or temperature limits; eye protection required when using compressed air
Certifications: UL Type 12 installation
Warranty: 10-year limited manufacturer warranty
Typical Applications: Electrical enclosures, control panels, industrial cabinets

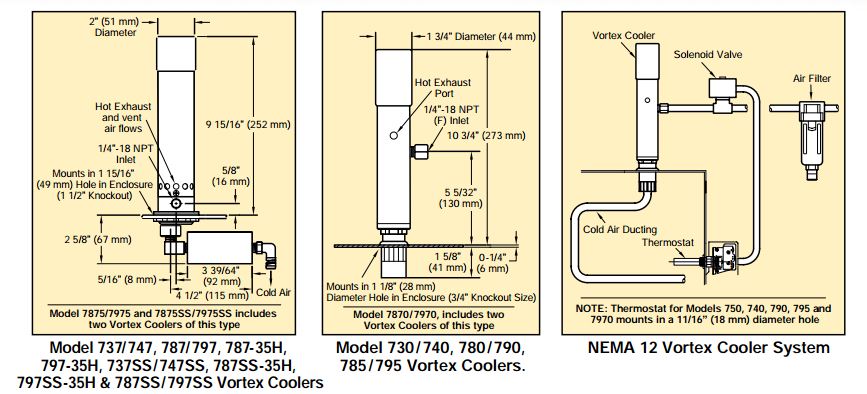

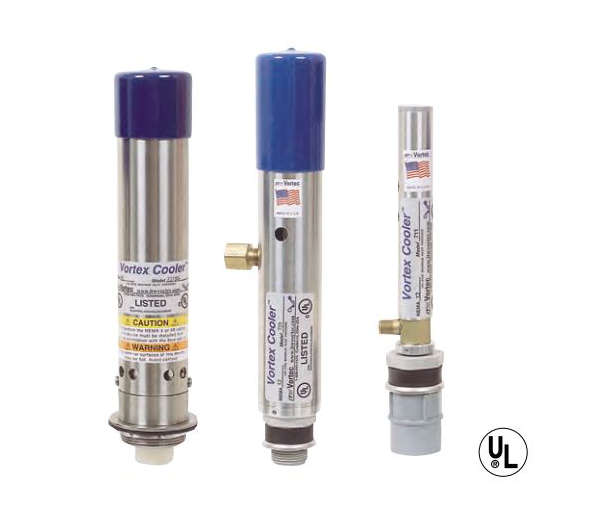

Model Numbers

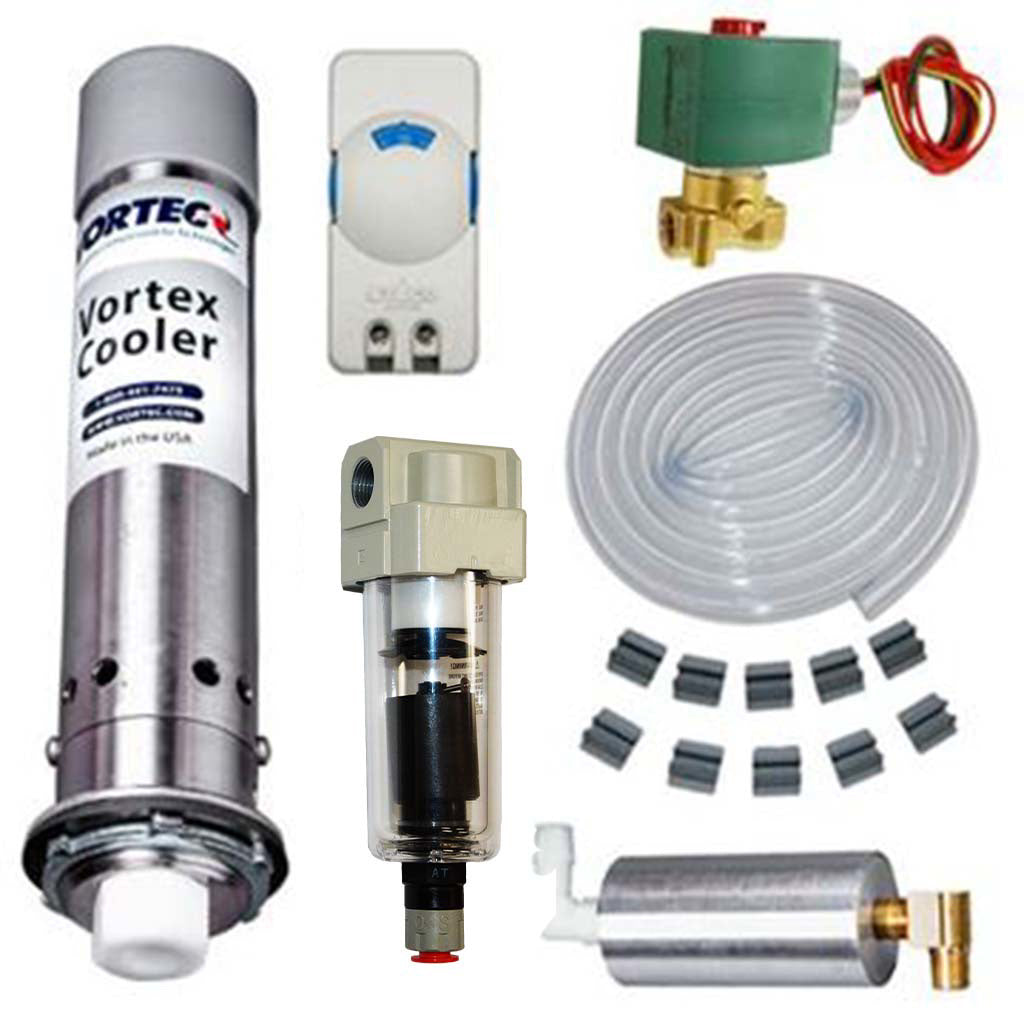

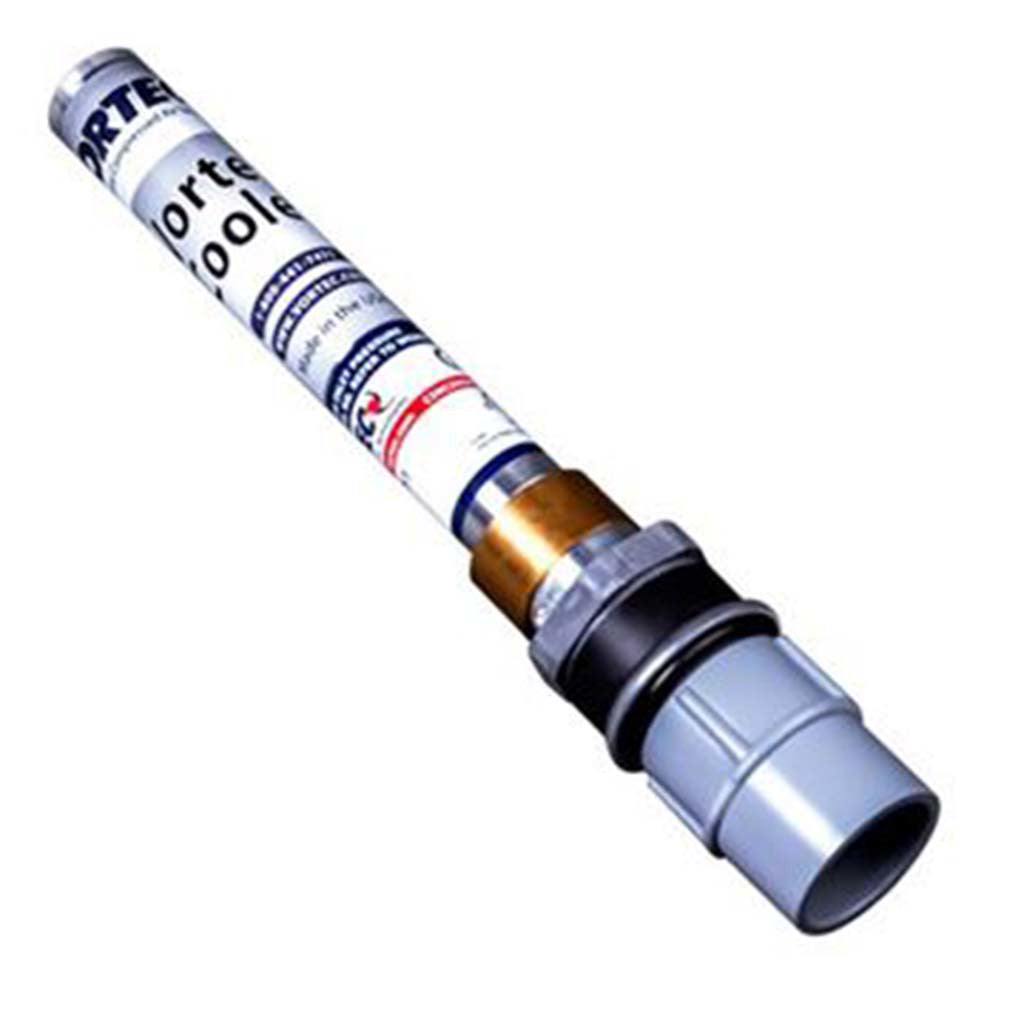

711 - 400 BTU Cooler Only
750 - 400 BTU Complete Kit with Electric Thermostat

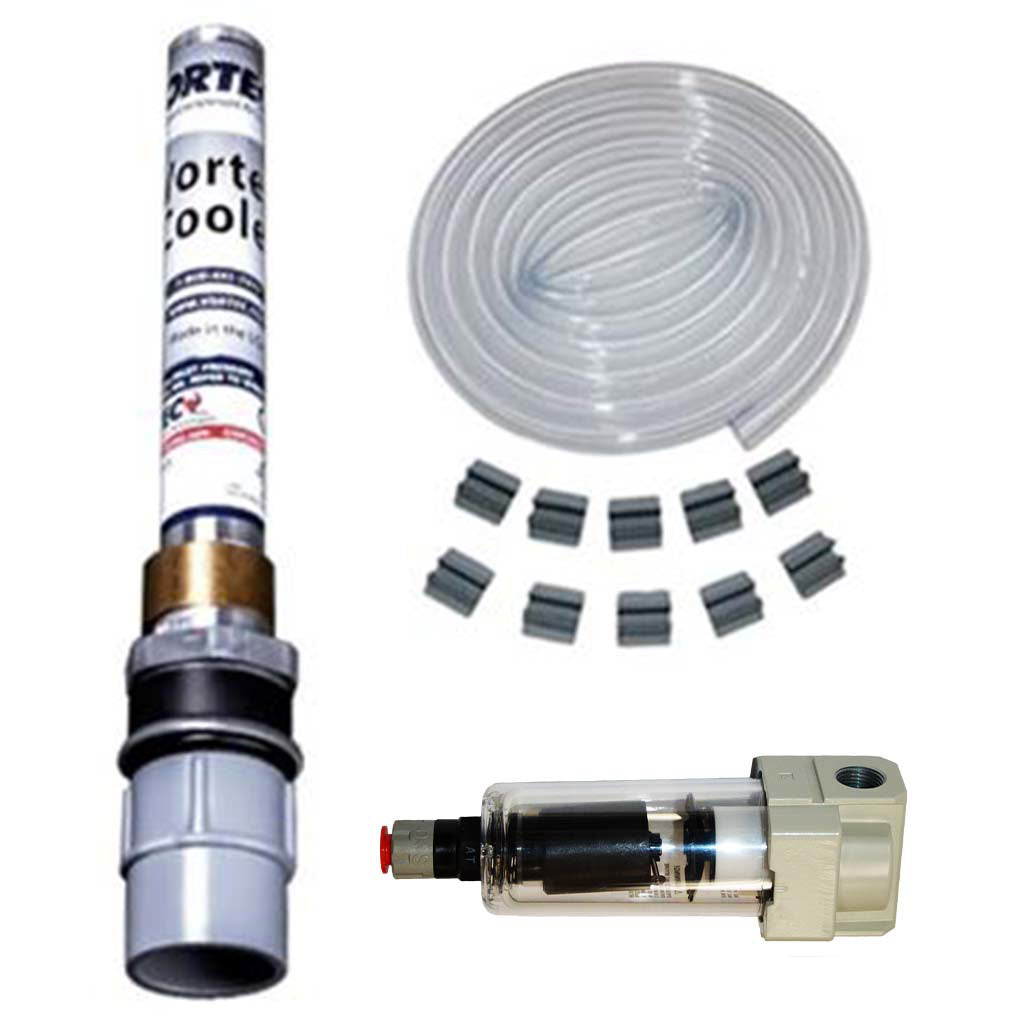

760 - 400 BTU Complete Kit No Thermostat
721-15H - 900 BTU Cooler Only
730 - 900 BTU Complete Kit No Thermostat

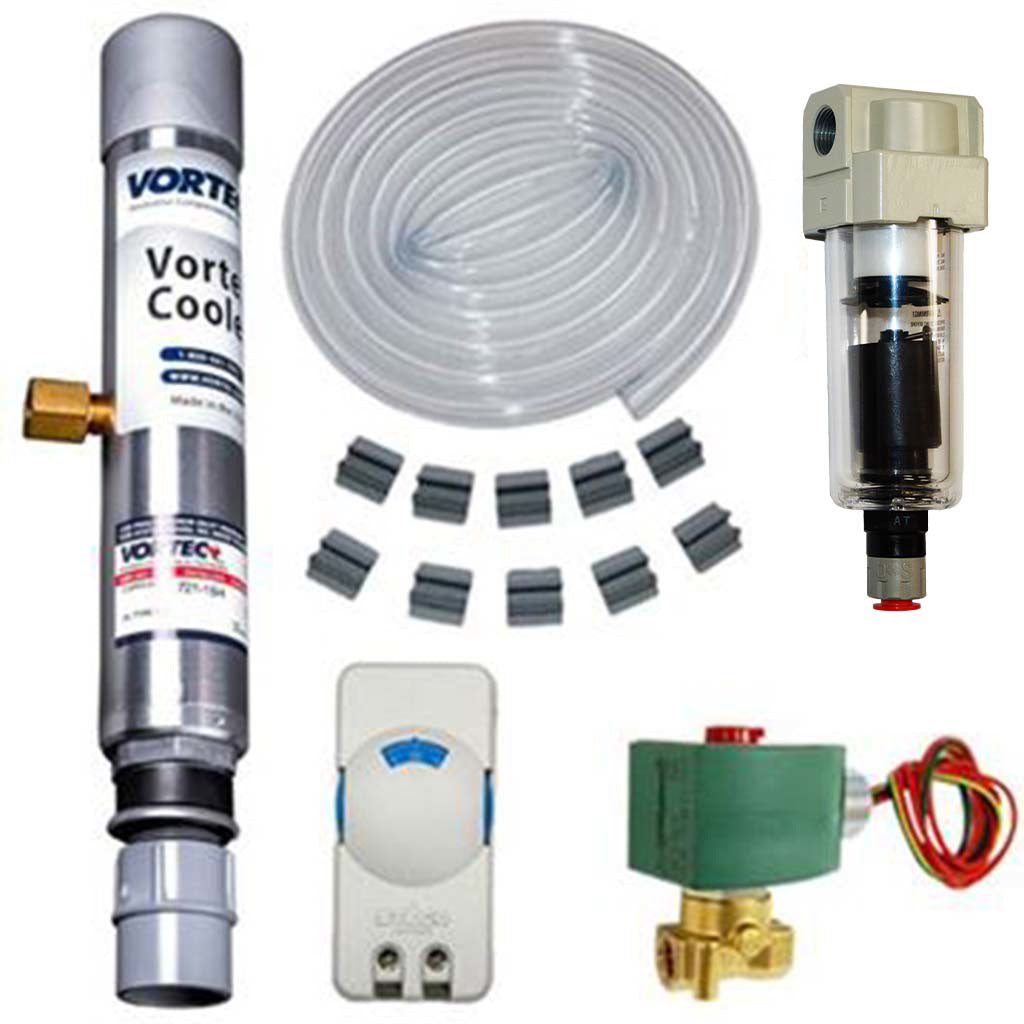

740 - 900 BTU Complete Kit with Electric Thermostat

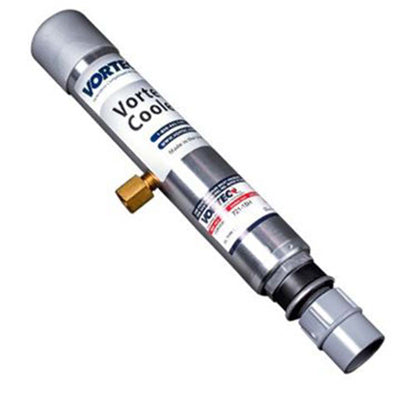

721 - 1500 BTU Cooler Only
790 - 1500 BTU Complete Kit with Electric Thermostat
780 - 1500 BTU Complete Kit No Thermostat
785 - 2500 BTU Complete Kit No Thermostat
721-35H - 2500 BTU Cooler Only
795 - 2500 BTU Complete Kit with Electric Thermostat

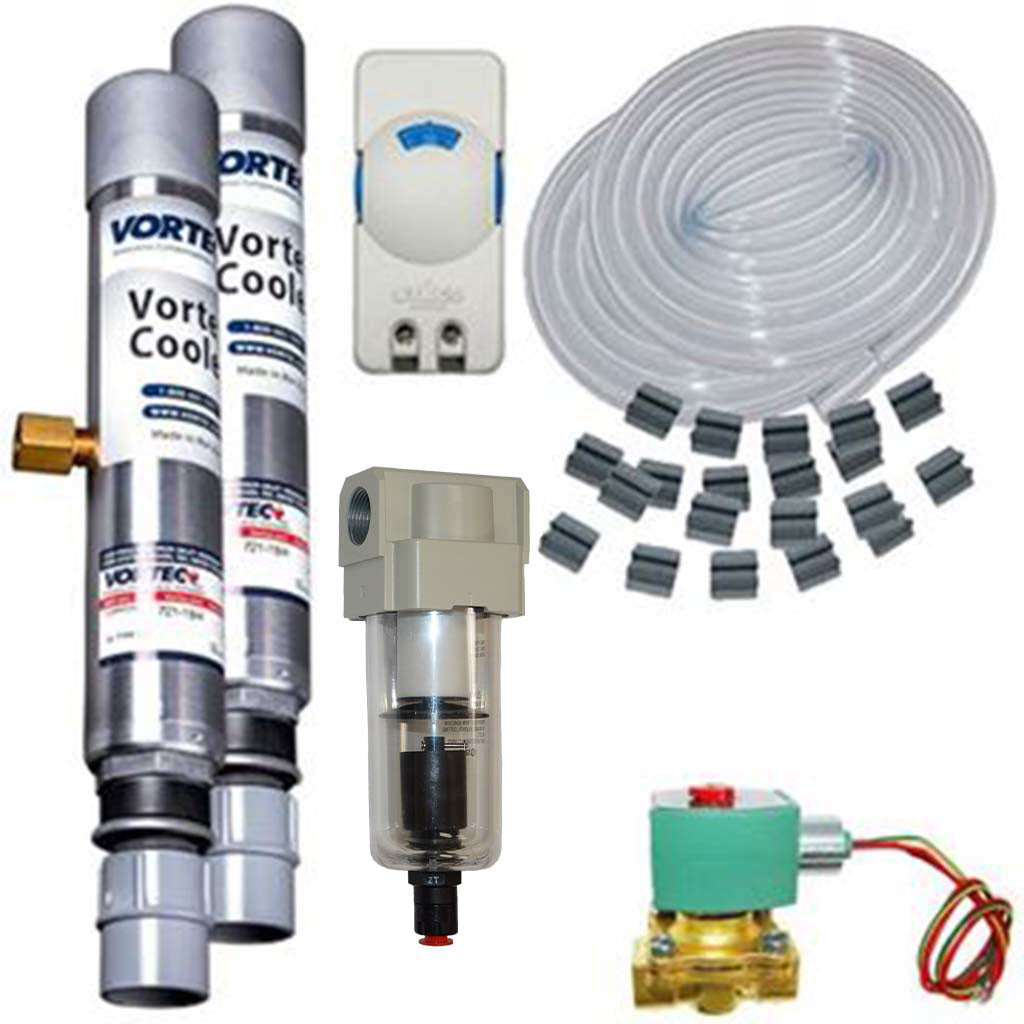

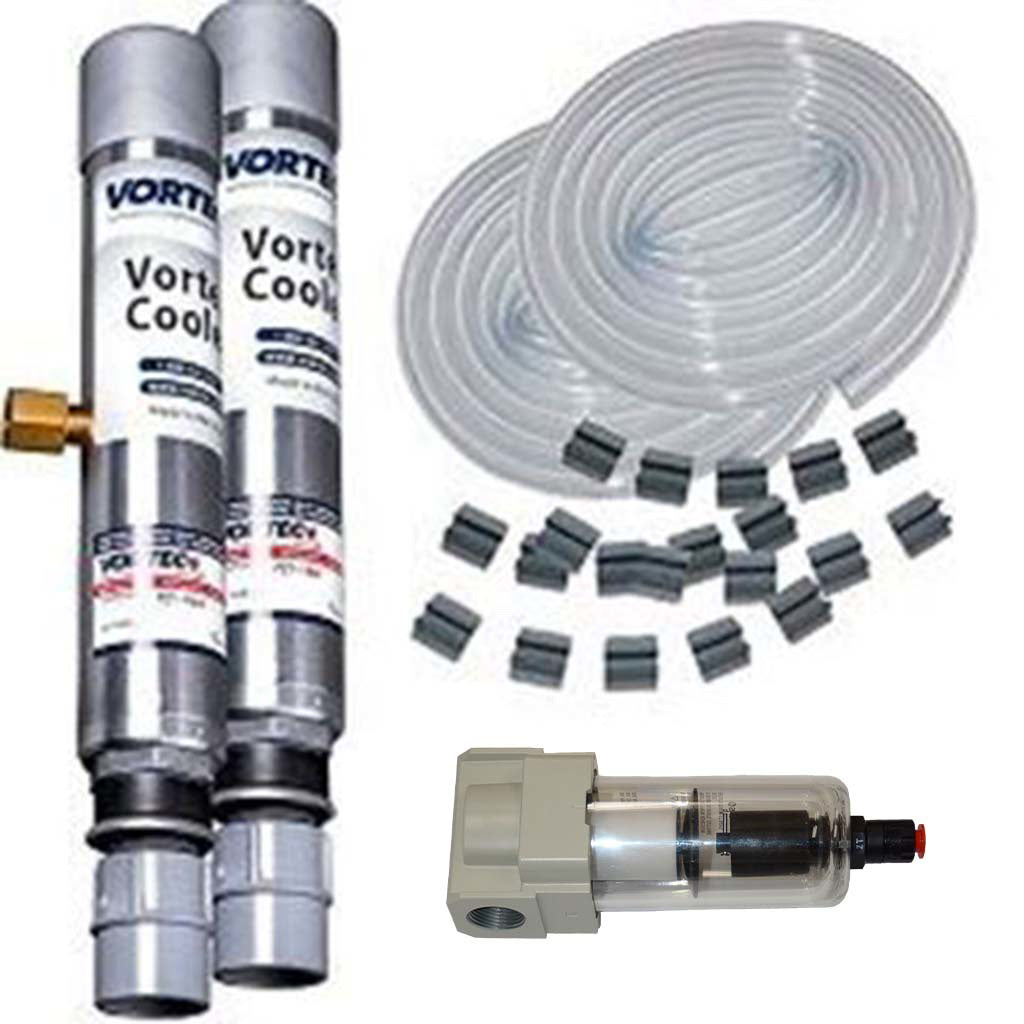

7870 - 5000 BTU Complete Kit No Thermostat
7970 - 5000 BTU Complete Kit with Electric Thermostat
